Model: 3553
Pre-Order

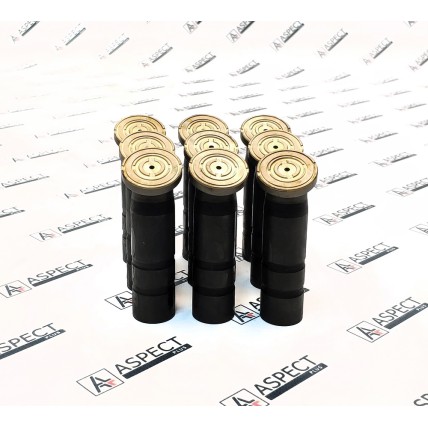

Spare part: Piston shoe Hitachi HMGF68A, HMGF57LA HANDOK Part number: Cross-Number: 8107650 Use in: ..
65.90 $
excl. VAT 65.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 6418
Pre-Order
Spare part: Retainer Plate Hitachi 3103750 HANDOK Part number: 3103750 Cross-Number: 3107859 Use in:..
83.80 $
excl. VAT 83.80 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 15903
Pre-Order

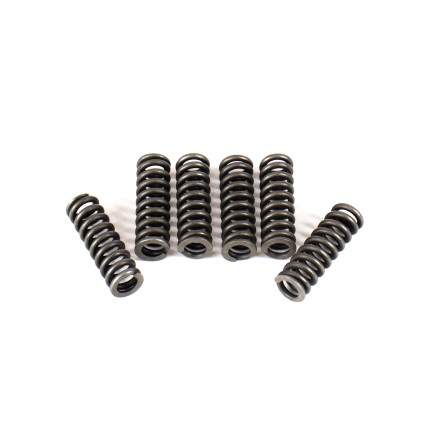

Spare part: Spring of Rotor Hitachi 4468258 SKS Part number: 4468258 Cross-Number: Use in: Please ma..
3.92 $
excl. VAT 3.92 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 5405
Pre-Order
Spare part: Valve plate Hitachi 3103258 HANDOK Part number: 3103258 Cross-Number: Use in: Please mak..
154.30 $
excl. VAT 154.30 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Hitachi HMGF68LA (HMK160) motor
The HMGF68LA (HMK160) hydraulic motor is a variable displacement, inclined block axial piston motor designed to operate under severe conditions, including high loads and long duty cycles. This model is widely used in construction machinery, mining equipment, and industrial systems.
Technical specifications of Hitachi HMGF68LA (HMK160):
- Type:Variable displacement axial piston motor
- Maximum working volume:160 cm³ per revolution
- Working pressure
- Nominal pressure 35 MPa 350 bar
- Maximum pressure: 40 MPa 400 bar
- Rotation speed:
- Maximum: up to 1600 rpm
- Weight: 120–140 kg, depending on configuration
- Application in special equipment:Heavy-duty systems, including hydraulic drives and stationary units, drilling rigs, cranes, large tractors, combines, heavy attachments, large excavators, etc.
Hydraulic motor cross number Hitachi HMGF68LA (HMK160): 9214849, 9231672, 9255876, 9251292, 9281841, 9281842, 9213431, 9231673, 9251699, 9251477, 0005207, 4396696, 4355728, 4462038, 4475147, 2047884, 4396755, 991345, 959501, 3107140, 2053333, 4468258, 3107797, 3094376, 4642740, 3094377, 4468248, 8100811, 8107650, 4468249, 4468250, 3103750, 3107859, 4506415, 9263062, 9264565, 4472355, 4461910, 4468244, M342056, 9134112, 4506418, 3103258
Installed in Hitachi models: ZX250L-5G, ZX270, ZX270-3, ZX270-HHE, ZX280-5G, ZX280LC-3, ZX280LC-3-HCME, ZX280LC-5G, ZX280LC-AMS, ZX280LCH-3, ZX280LC-HCME, ZX290L-5G, ZX290LC-5B, ZX290LCN-5B, ZX330, ZX330-3, ZX330-3G, ZX330-3G, ZX330-3-HCMC, ZX330-5G, ZX330LC-5G, ZX350-3-AMS, ZX350-3-AMS, ZX350H, ZX350H-3, ZX350H-3, ZX350H-3G, ZX350H-5G, ZX350K, ZX350K-3, ZX350K-3G, ZX350K-5G, ZX350LC-3-HCME, ZX350LC-3-HCME, ZX350LC-5B, ZX350LC-AMS, ZX350LCH-5G, ZX350LC-HCME, ZX350LCK-5G, ZX350LCN-5B, ZX360H-3G, ZX370MTH, FV30
The company "Aspect Plus" offers a wide range of spare parts for repairing the Hitachi HMGF68LA (HMK160) hydraulic motor.
