Model: 5497
Spare part: Ball Bearing Kayaba MAG170, MSF170 SNR
Part number:
Cross-Number:
Use in: Kay..
31.50 $
excl. VAT 31.50 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 10675
Spare part: Ball guide Kayaba MAG170VP-360, MSF170VP-3600 SKS
Part number:
Cross-Number:
..
41.09 $
excl. VAT 41.09 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 5562
Spare part: Cylinder block press Pin Kayaba MAG170, MSF170 SKS Part number: Cross-Number: Use in: Ka..
4.75 $
excl. VAT 4.75 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 15921
Spare part: Cylinder block Rotor Kayaba MAG170, MSF170VP teeth L=57.0 mm SKS Part number: Cross-Numb..
305.26 $
excl. VAT 305.26 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 16662
Spare part: Cylinder block Rotor Kayaba MAG170, MSF170VP teeth L=62.0 mm SKS Part number: Cross-Numb..
305.26 $
excl. VAT 305.26 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 7225
Spare part: Cylinder block Rotor Kayaba MAG170VP-3600, MSF170VP-3600 HANDOK Part number: Cross-Numbe..
261.16 $
excl. VAT 261.16 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 10920
Spare part: Cylinder block Rotor Kayaba MAG170VP-3600, MSF170VP-3600 SKS Part number: Cross-Number: ..
305.26 $
excl. VAT 305.26 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 11988

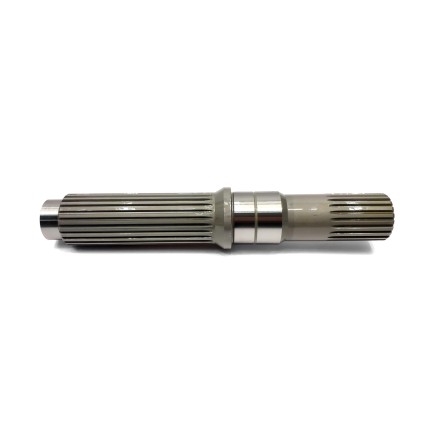

Spare part: Drive Shaft Motor Kayaba MAG170 SKS Part number: Cross-Number: Use in: Kayaba MAG170 Use..
155.92 $
excl. VAT 155.92 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 11688

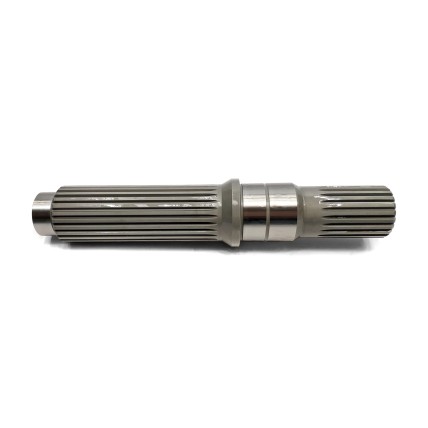

Spare part: Drive Shaft Motor Kayaba MSF170VP-3600 LJM0073 SKS
Part number: LJM0073
Cross-Nu..
164.83 $
excl. VAT 164.83 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 11437
Spare part: Friction plate Kayaba MAG150, MAG170 SKS Part number: Cross-Number: Use in: Kayaba MAG15..
22.33 $
excl. VAT 22.33 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10275
Spare part: Friction plate Kayaba MAG170, MSF170 SKS Part number: Cross-Number: Use in: Kayaba MAG17..
22.33 $
excl. VAT 22.33 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 13283

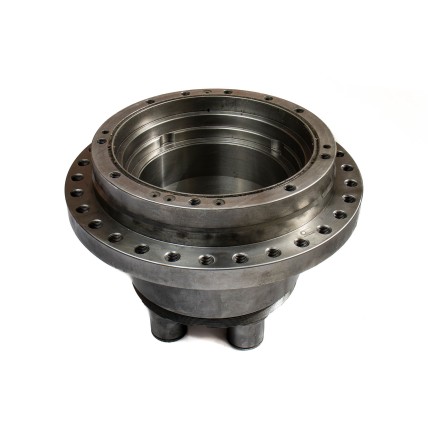

Spare part: Motor Housing (Casing) Kayaba 332/H3935 SPINPARTS Part number: 332/H3935 Cross-Number: U..
386.40 $
excl. VAT 386.40 $
Hydraulic housing parts:
Hydraulic housing parts
Most Viewed
Model: 10046
Spare part: Piston shoe Kayaba MAG170VP-3600, MSF170VP-3600 SKS Part number: Cross-Number: Use in: K..
34.87 $
excl. VAT 34.87 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 5052
Spare part: Retainer Plate Kayaba MAG170VP-3600, MSF170VP-3600 HANDOK
Part number:
C..
43.08 $
excl. VAT 43.08 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 14007
Spare part: Retainer Plate Kayaba MSF170, MAG170 SKS Part number: Cross-Number: Use in: Kayaba MSF17..
57.67 $
excl. VAT 57.67 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kayaba MAG170 hydraulic motor characteristics
The Kayaba MAG170 hydraulic motor is a high-performance variable displacement axial piston motor with integrated planetary gear set designed to drive the travel motor of heavy construction equipment. It provides power, reliability and durability, making it an ideal choice for excavators weighing up to ~22 tons.
Technical characteristics of the Kayaba MAG170 hydraulic motor:
- Type: axial piston hydraulic motor with variable displacement
- Design: integrated planetary gearbox
- Displacement: ~170 cm³/rev
- Maximum pressure: up to 300 bar
- Maximum rotation speed: up to 2700 rpm
- Total weight: ~65 kg
The Kayaba MAG170 hydraulic motor is widely used as a travel motor in heavy excavators, crawler loaders, and other construction equipment weighing up to ~22 tons.
The Kayaba MAG170 hydraulic motor has the following advantages:
- High power and reliability in difficult operating conditions
- Compact design with integrated gearbox
- Energy efficiency thanks to variable displacement
- Long service life and easy maintenance
Hydraulic motor cross number: B0240-93031, LQ15V00019F1, KRA1426, B0240-93024
Installed in equipment models:
- Sumitomo SH200-3
- Kobelco SK250-6ES SK230-6 SK235SR SK250-8 SK260-8
- Case CX210
- LG906
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kayaba MAG170 hydraulic motor.
