Sort By:
Most Viewed
Model: 17370
Spare part: Ball guide Nabtesco GM05VA, GM05VL, GM06 SKS
Part number:
Cross-Number:
Use i..
29.50 $
excl. VAT 29.50 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17993
Spare part: Coupling of drive Shaft Nabtesco 279-1329 AFM
Part number: 279-1329
Cross-Number..
78.00 $
excl. VAT 78.00 $
Couplings:
Couplings
Most Viewed
Model: 15570
Spare part: Friction plate Nabtesco GM05VA, GM06VL, PCR-1B-05A, PVH3B35 SKS Part number: Cross-Numbe..
20.54 $
excl. VAT 20.54 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 15571
Spare part: Separation Plate Nabtesco GM05VA, GM06VL, PCR-1B-05A, PVH3B35 SKS Part number: Cross-Num..
19.12 $
excl. VAT 19.12 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10398
Pre-Order

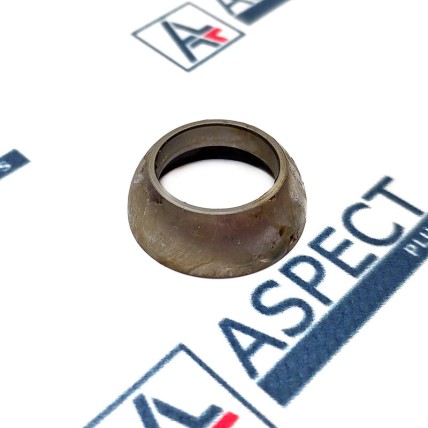

Spare part: Ball guide Nabtesco GM06VA, GM06VN HANDOK Part number: Cross-Number: Use in: Nabtesco GM..
22.90 $
excl. VAT 22.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10399
Pre-Order

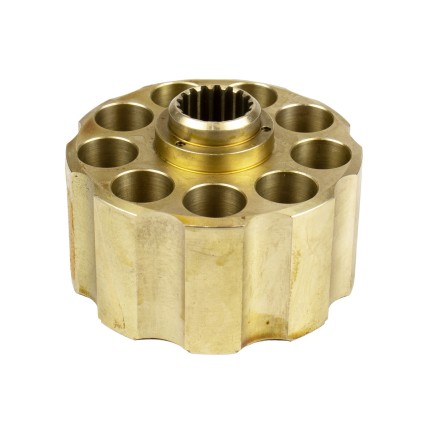

Spare part: Cylinder block Rotor Nabtesco GM06VA, GM06VN, GM06VL HANDOK Part number: Cross-Number: U..
195.56 $
excl. VAT 195.56 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 10400
Pre-Order

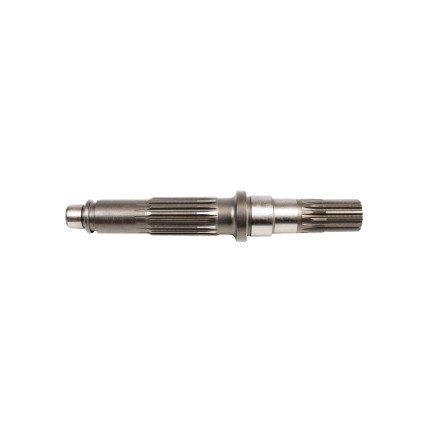

Spare part: Drive Shaft motor Nabtesco GM06VA, GM06VN HANDOK
Part number:
Cross-Number:
U..
45.09 $
excl. VAT 45.09 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 10401
Pre-Order

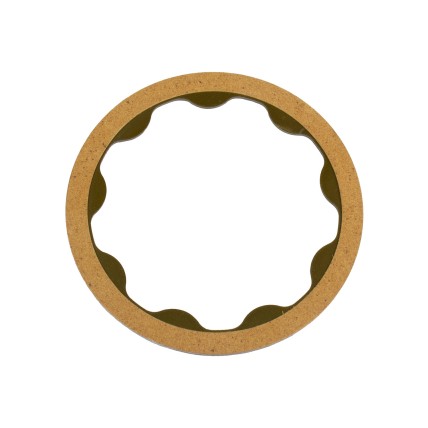

Spare part: Friction plate Nabtesco GM06VA, GM06VN HANDOK Part number: Cross-Number: Use in: Nabtesc..
18.11 $
excl. VAT 18.11 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17992
Pre-Order
Spare part: Gearbox shaft Nabtesco 279-1321 AFM
Part number: 279-1321
Cross-Number: 2791321
..
230.00 $
excl. VAT 230.00 $
Reducer spare parts:
Reducer spare parts
Most Viewed
Model: 17932
Pre-Order
Spare part: Piston shoe Nabtesco 07883 SKS
Part number: 07883
Cross-Number:
Use in:
Pl..
17.00 $
excl. VAT 17.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Top
Most Viewed
Model: 10402
Pre-Order

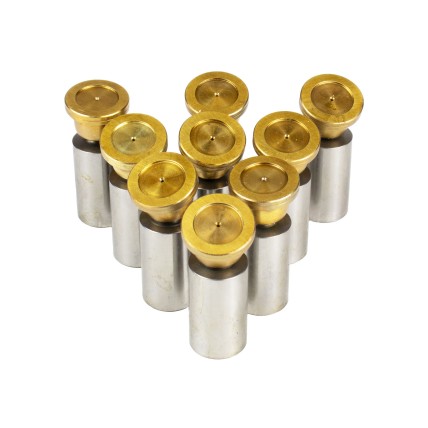

Spare part: Piston shoe Nabtesco GM06VA, GM06VN HANDOK Part number: Cross-Number: Use in: Nabtesco G..
14.62 $
excl. VAT 14.62 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 16054
Pre-Order
Spare part: Retainer Plate Nabtesco GM05VA, GM06VA, GM06VN, GM06VL SKS
Part number:
Cross-Nu..
33.41 $
excl. VAT 33.41 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10404
Pre-Order

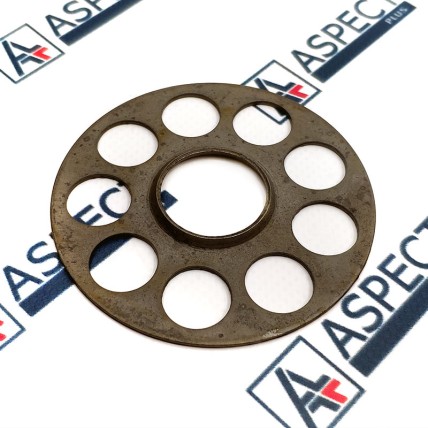

Spare part: Retainer Plate Nabtesco GM06VA, GM06VN HANDOK Part number: Cross-Number: Use in: Nabtesc..
37.20 $
excl. VAT 37.20 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10403
Pre-Order

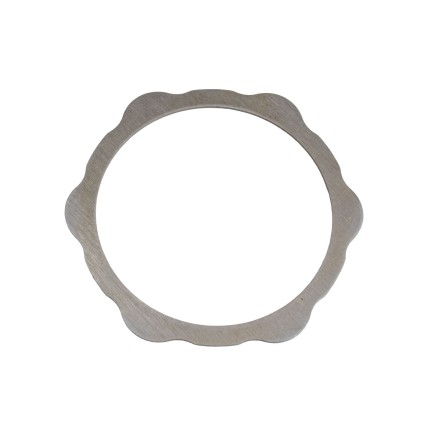

Spare part: Separation plate Nabtesco GM06VA, GM06VN HANDOK Part number: Cross-Number: Use in: Nabte..
18.29 $
excl. VAT 18.29 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10405
Pre-Order
Spare part: Swash plate (Cam rocker) Nabtesco GM06VA, GM06VN HANDOK Part number: Cross-Number: Use i..
128.72 $
excl. VAT 128.72 $
Main hydraulic units:
Main hydraulic units
Characteristics of the Nabtesco GM06 hydraulic motor
Nabtesco GM06 is a reliable and compact hydraulic motor with a torque of up to 5,590 N·m, a pressure of 24.5 MPa, a volume of 27.5 cm3/rev and a weight of about 53 kg. Due to its design features, it is ideal for medium-tonnage special equipment, ensuring smooth, safe and efficient operation.
Technical characteristics of the Nabtesco GM06 hydraulic motor:
- Maximum torque: 5,590 N m (570 kg m)
- Maximum gearbox speed: 60 rpm
- Gear ratio: 60:1 (max. 68.6)
- Working pressure: 24.5 MPa
- Engine capacity: 27.5 cm3/rev
- Maximum motor speed: ~3,900 rpm
- Torque: 64.7 N m (6.6 kg m)
- Weight: ≈ 53 kg
The Nabtesco GM06 motor is designed for front (travel) and slewing drives of medium-sized special equipment (~4–5.6 tons), including mini-excavators, road and construction equipment, etc.
Hydraulic motor cross number:
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Nabtesco GM06 hydraulic motor.
