A11V190 A11VO190 A11VLO190

Bosch Rexroth A11V190 A11VO190 A11VLO190 pump specifications

The A11VO190, A11VLO190, and A11V190 models are powerful variable displacement axial piston pumps used in complex hydraulic systems. They are characterized by high performance, reliability, and the ability to operate under high loads.

Technical specifications of Bosch Rexroth A11V190 A11VO190 A11VLO190:

• Displacement: 190 cm³
• Working pressure:
  • Nominal: up to 35 MPa 350 bar
  • Maximum: up to 40 MPa 400 bar
• Maximum rotation speed: 1800 rpm
• Productivity (at maximum speed): up to 342 l/min
• Weight: 80-85 kg
• Working medium: mineral oils (DIN 51524)
• Application in special equipment: metalworking, press equipment, industrial manipulators, drilling rigs, quarry machines, combines, agricultural machinery, etc.

Differences between models

• A11VO190: basic model for general applications with high efficiency and flexibility.
• A11VLO190: Optimized for precise adjustment of displacement and pressure, improving hydraulic system control.
• A11V190: a simple option without additional features, but with high reliability for more standard operating conditions.

Hydraulic pump cross number: JRJ0215, 333/J4316, 334/J0641

Installed in the model:

• KCP KCP20Z120, KCP24ZX120, KCP28ZX120, KCP31ZX5170
• John Deere 1270D
• PVE5021
• Logset 8H
• JCB JS 200W

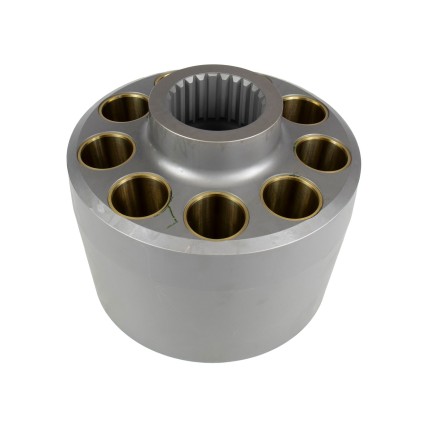

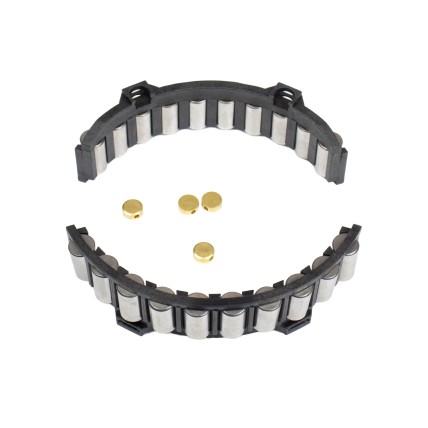

The company "Aspect Plus" offers a wide range of spare parts for the repair of the Bosch Rexroth A11V190 A11VO190 A11VLO190 hydraulic pump.
