A2FO90 A2FM90 A2FE90

Bosch Rexroth A2FO90 A2FM90 A2FE90 pump specifications

The A2FO90 (open loop), A2FM90 (closed loop) and A2FE90 (with integrated speed and direction control) are constant displacient axial piston pumps. They are known for their high performance and reliability in a variety of applications.

Technical specifications of Bosch Rexroth A2FO90 A2FM90 A2FE90:

• Type: axial piston pump
• Maximum working volume: 90 cm³
• Working pressure:
  • A2FO90
    • Nominal: 35 MPa 350 bar
    • Maximum: up to 40 MPa 400 bar
  • A2FM90
    • Nominal: up to 40 MPa 400 bar
    • Maximum: up to 45 MPa 450 bar
  • A2FE90
    • Nominal: up to 40 MPa 400 bar
    • Maximum: up to 45 MPa 450 bar
• Maximum rotation speed: 2400-2600 rpm
• Working environment: hydraulic oils or equivalent ISO VG 32-46
• Weight:
  • A2FO90: 28-30 kg
  • A2FM90: 30-32 kg
  • A2FE90: 32-34 kg
• Application in special equipment: hydraulic presses, pumping stations, wheel and drum drives, excavators, loaders, etc.

Hydraulic pump cross number:

Installed in the model:

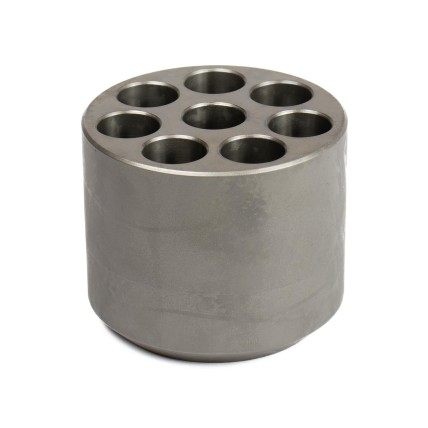

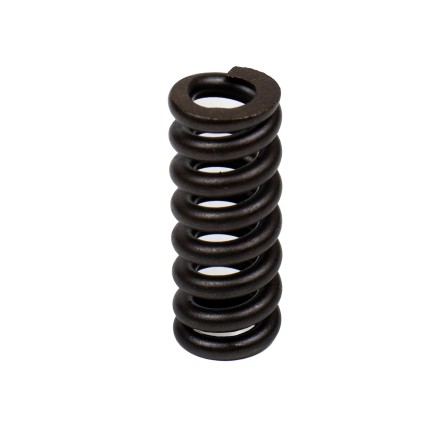

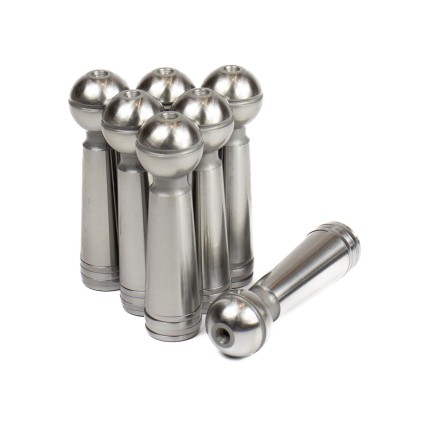

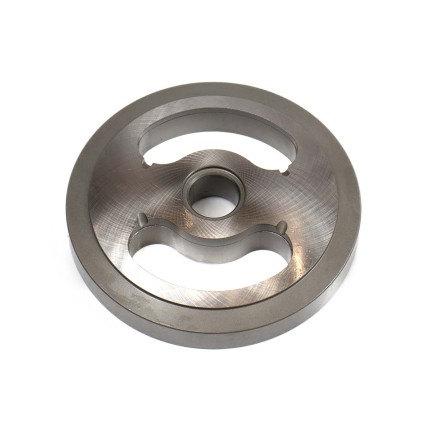

The company "Aspect Plus" offers a wide range of spare parts for the repair of the Bosch Rexroth A2FO90 A2FM90 A2FE90 hydraulic pump.
