AP2D14

Sort By:

Most Viewed

Cylinder block press Pin Uchida AP2D18, AP2D14, A10V28, A10VD28, GM21, TM18, PVD-1B SKS

Model: 9471

In stock

Brand:: SKS Hydraulic

Spare part: Cylinder block press Pin Uchida AP2D18, AP2D14, A10V28, A10VD28, GM21, TM18, PVD-1B SKS ..

2.49 $ excl. VAT 2.49 $

Pins and Retainers for Hydraulic Pumps and Motors: Pins and Retainers for Hydraulic Pumps and Motors

Most Viewed

Cylinder block Rotor Uchida AP2D14 SKS

Model: 15305

In stock

Brand:: SKS Hydraulic

Spare part: Cylinder block Rotor Uchida AP2D14 SKS Part number: Cross-Number: Use in: Uchida AP2D14 ..

139.34 $ excl. VAT 139.34 $

Main hydraulic units: Main hydraulic units

Most Viewed

Drive Shaft Uchida AP2D14, AP2D16 HANDOK

Model: 9243

In stock

Brand:: HANDOK

Spare part: Drive Shaft Uchida AP2D14, AP2D16 HANDOK Part number: Cross-Number: Use in: Uchida AP2D1..

49.94 $ excl. VAT 49.94 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Piston shoe Uchida AP2D14 HANDOK

Model: 9244

In stock

Brand:: HANDOK

Spare part: Piston shoe Uchida AP2D14 HANDOK Part number: Cross-Number: Use in: Uchida AP2D14 Use in..

11.43 $ excl. VAT 11.43 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Piston shoe Uchida AP2D14 SKS

Model: 16247

In stock

Brand:: SKS Hydraulic

Spare part: Piston shoe Uchida AP2D14 SKS Part number: Cross-Number: Use in: Uchida AP2D1..

14.06 $ excl. VAT 14.06 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Retainer Plate Uchida AP2D14 AFM

Model: 9864

In stock

Brand:: AFTERMARKET

Spare part: Retainer Plate Uchida AP2D14 AFM Part number: Cross-Number: Use in: Uchida AP..

25.00 $ excl. VAT 25.00 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

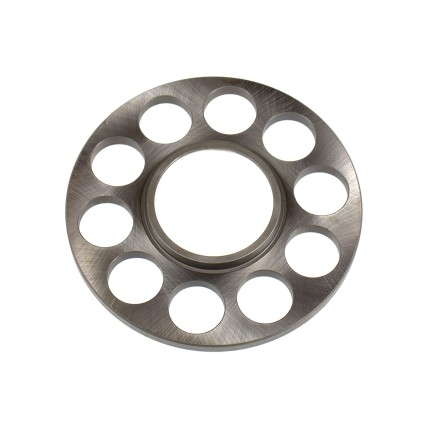

Retainer Plate Uchida AP2D14 SKS

Model: 15306

In stock

Brand:: SKS Hydraulic

Spare part: Retainer Plate Uchida AP2D14 SKS Part number: Cross-Number: Use in: Uchida AP2D14 Use in..

27.42 $ excl. VAT 27.42 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Seal kit pump Uchida AP2D14, LV1R SKS

Model: 9357

In stock

Brand:: SKS Hydraulic

Spare part: Seal kit pump Uchida AP2D14, LV1R SKS Part number: Cross-Number: Use in: Uchi..

58.45 $ excl. VAT 58.45 $

Hydraulic seal kits: Hydraulic seal kits

Most Viewed

Seal kit pump Uchida AP2D14, LV3R SKS

Model: 9358

In stock

Brand:: SKS Hydraulic

Spare part: Seal kit pump Uchida AP2D14, LV3R SKS Part number: Cross-Number: Use in: Uchida AP2D14, ..

57.14 $ excl. VAT 57.14 $

Hydraulic seal kits: Hydraulic seal kits

Most Viewed

Valve plate Uchida AP2D14 HANDOK

Model: 9247

In stock

Brand:: HANDOK

Spare part: Valve plate Uchida AP2D14 HANDOK Part number: Cross-Number: Use in: Uchida AP2D14 Use in..

59.60 $ excl. VAT 59.60 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Ball guide Uchida AP2D14, AP2D18 HANDOK

Model: 9241

Pre-Order

Brand:: HANDOK

Spare part: Ball guide Uchida AP2D14, AP2D18 HANDOK Part number: Cross-Number: Use in: Uchida AP2D14..

19.40 $ excl. VAT 19.40 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Cylinder block Rotor Uchida AP2D14 HANDOK

Model: 9242

Pre-Order

Brand:: HANDOK

Spare part: Cylinder block Rotor Uchida AP2D14 HANDOK Part number: Cross-Number: Use in: Uchida AP2D..

201.20 $ excl. VAT 201.20 $

Main hydraulic units: Main hydraulic units

Most Viewed

Retainer Plate Uchida AP2D14 HANDOK

Model: 9245

Pre-Order

Brand:: HANDOK

Spare part: Retainer Plate Uchida AP2D14 HANDOK Part number: Cross-Number: Use in: Uchida AP2D14 Use..

27.60 $ excl. VAT 27.60 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Shoe plate Uchida AP2D14, AP2D18 H=1.2 mm HANDOK

Model: 9246

Pre-Order

Brand:: HANDOK

Spare part: Shoe plate Uchida AP2D14, AP2D18 H=1.2 mm HANDOK Part number: Cross-Number: Use in: Uchi..

22.20 $ excl. VAT 22.20 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Characteristics of the Uchida AP2D14 hydraulic pump

The Uchida AP2D14 hydraulic pump is a dual (tandem) axial piston pump with variable displacement, which is a key component of the hydraulic systems of mini excavators and other mobile equipment. Its design, combining two pumps in one housing, allows for compact placement of the unit and at the same time effectively powering several independent hydraulic circuits. The AP2D14 pump is known for its reliability and ability to optimize the power taken from the engine, ensuring smooth and productive operation of the machine.

Technical characteristics of the Uchida AP2D14 hydraulic pump:

Type: Axial piston pump, double (tandem), with variable displacement.
Design: Swash plate pump. Often equipped with a third gear pump for control circuits.
Displacement (piston part): 2 x ~14-16 cm³/rev:
Nominal working pressure: 23.0 MPa (230 bar)
Maximum rotation speed: ~2400 rpm
Capacity (Flow): 2 x 38.4 l/min
Direction of rotation: Right (clockwise)
Weight: Approximately 30 - 35 kg
Application: Main hydraulic pump for mini excavators weighing 3-4 tons.

Hydraulic pump cross number:

Hydraulic pump models: Ap2d14lv1rs6, AP2D14LV1RS7-952-1, AP2D14LV1RS7

Installed in the model:

The company "Aspect Plus" offers a wide range of spare parts for the repair of the Uchida AP2D14 hydraulic pump.
