HPV118JX TRIPLE TYPE

Sort By:

Most Viewed

Spring of Rotor Hitachi 4179181 HANDOK

Model: 2749

In stock

Brand:: HANDOK

Spare part: Spring of Rotor Hitachi 4179181 HANDOK Part number: 4179181 Cross-Number: Use in: Please..

8.14 $ excl. VAT 8.14 $

Hydraulic parts other: Hydraulic parts other

Most Viewed

Spring of Rotor Hitachi 4179181 SKS

Model: 16293

In stock

Brand:: SKS Hydraulic

Spare part: Spring of Rotor Hitachi 4179181 SKS Part number: 4179181 Cross-Number: Use in: Please ma..

10.85 $ excl. VAT 10.85 $

Hydraulic parts other: Hydraulic parts other

Most Viewed

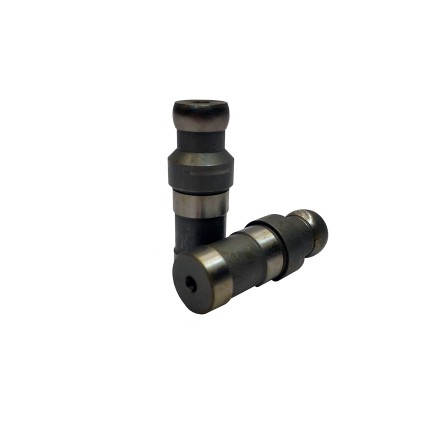

Tilting Pin Hitachi 4338053 HANDOK

Model: 2744

In stock

Brand:: HANDOK

Spare part: Tilting Pin Hitachi 4338053 HANDOK Part number: 4338053 Cross-Number: Use in: Please mak..

16.03 $ excl. VAT 16.03 $

Pins and Retainers for Hydraulic Pumps and Motors: Pins and Retainers for Hydraulic Pumps and Motors

Most Viewed

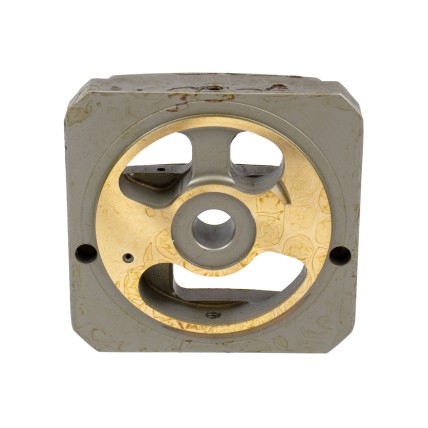

Valve plate Left Hitachi 2052073 HANDOK

Model: 2739

In stock

Brand:: HANDOK

Spare part: Valve plate Left Hitachi 2052073 HANDOK Part number: 2052073 Cross-Number: Use in: Pleas..

113.08 $ excl. VAT 113.08 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

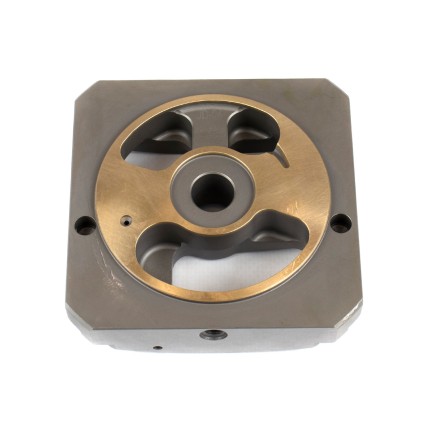

Valve plate Left Hitachi 2052073 SKS

Model: 15915

In stock

Brand:: SKS Hydraulic

Spare part: Valve plate Left Hitachi 2052073 SKS Part number: 2052073 Cross-Number: Use in: Please m..

170.88 $ excl. VAT 170.88 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

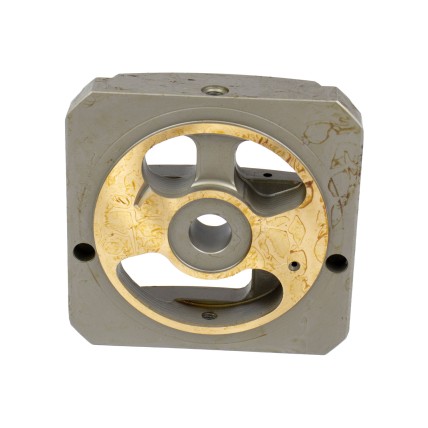

Valve plate Right Hitachi 2052067 HANDOK

Model: 2738

In stock

Brand:: HANDOK

Spare part: Valve plate Right Hitachi 2052067 HANDOK Part number: 2052067 Cross-Number: Use in: Plea..

113.08 $ excl. VAT 113.08 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

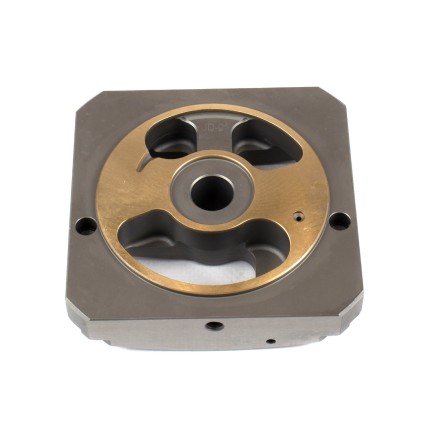

Valve plate Right Hitachi 2052067 SKS

Model: 15916

In stock

Brand:: SKS Hydraulic

Spare part: Valve plate Right Hitachi 2052067 SKS Part number: 2052067 Cross-Number: Use in: Please ..

170.84 $ excl. VAT 170.84 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

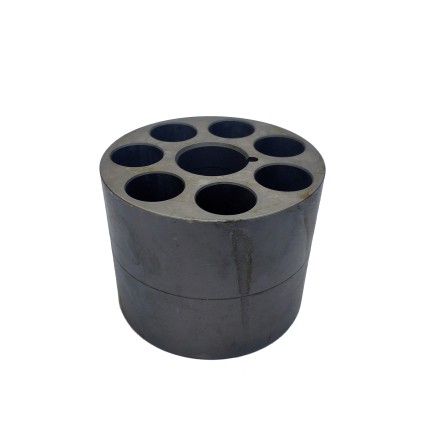

Cylinder block Rotor Hitachi 2052956 HANDOK

Model: 2737

Pre-Order

Brand:: HANDOK

Spare part: Cylinder block Rotor Hitachi 2052956 HANDOK Part number: 2052956 Cross-Number: Use in: P..

232.60 $ excl. VAT 232.60 $

Main hydraulic units: Main hydraulic units

Most Viewed

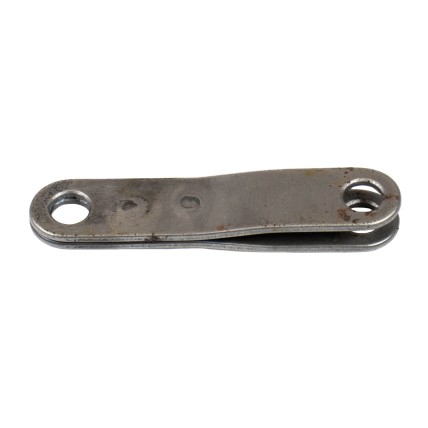

Link of Valve plate Hitachi 9724756 HANDOK

Model: 2822

Pre-Order

Brand:: HANDOK

Spare part: Link of Valve plate Hitachi 9724756 HANDOK Part number: 9724756 Cross-Number: ..

28.66 $ excl. VAT 28.66 $

Pins and Retainers for Hydraulic Pumps and Motors: Pins and Retainers for Hydraulic Pumps and Motors

Hitachi HPV118JX TRIPLE TYPE pump specifications

The Hitachi HPV118JX Triple Type hydraulic pump is a three-stage axial piston pump designed to provide multi-functional operation in difficult operating conditions. This design allows for simultaneous service of multiple hydraulic circuits, making it ideal for large-sized special equipment that requires high power and flexibility.

Technical specifications Hitachi HPV118JX TRIPLE TYPE:

Type: three-stage axial piston pump with inclined block.
Maximum working volume: each block has a volume of: 118 cm³; total productivity depends on the number of simultaneously operating sections
Working pressure:
- Nominal pressure up to 32 MPa 320 bar
- Maximum pressure: up to 35 MPa 350 bar
Rotation speed:
- Maximum: up to 2000 rpm
Weight: 250–300 kg
Application in special equipment: Hitachi excavators

Hydraulic pump cross number: 9302824, YB60000333, YB60000334, YB60000335, YB60000104, YB60000105, 9302825, YB60000106, YB60000107

Installed in the model: Hitachi ZH200-A, ZH200LC-A, ZX250LC-5B, ZX250LCN-5B, ZX290LC-5B, ZX290LCN-5B

The company "Aspect Plus" offers a wide range of spare parts for repairing the Hitachi HPV118JX TRIPLE TYPE hydraulic pump.
