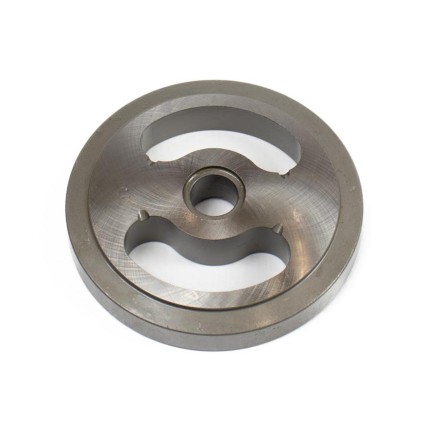

Valve plate Motor Bosch Rexroth R909650832 SKS

Model: 13134

Pre-Order

Brand:: SKS Hydraulic

Spare part: Valve plate Motor Bosch Rexroth R909650832 SKS Part number: R909650832 Cross-Number: Use..

59.61 $ excl. VAT 59.61 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Bosch Rexroth A2FO63 A2FM63 pump characteristics

Models A2FO63 (open circuit) and A2FM63 (closed circuit) are constant displacient axial piston pumps. They are widely used in high pressure systis due to their reliability, compactness and high efficiency.

Technical specifications of Bosch Rexroth A2FO63 A2FM63:

Type: axial piston pump
Maximum working volume: 63 cm³
Working pressure
- A2FO63
  - Nominal: 35 MPa 350 bar
  - Maximum: up to 40 MPa 400 bar
- A2FM63
  - Nominal: up to 40 MPa 400 bar
  - Maximum: up to 45 MPa 450 bar
Maximum rotation speed: 2800–3000 rpm
Working environment: hydraulic oils or equivalent ISO VG 32–46
Weight:
- A2FO63: 18-20 kg
- A2FM63: 20-22 kg
Application in special equipment: excavators, cranes, loaders, tractors, combines, sprayers, etc.

Hydraulic pump cross number:

Installed in the model:

The company "Aspect Plus" offers a wide range of spare parts for the repair of the Bosch Rexroth A2FO63 A2FM63 hydraulic pump.
