A6VM107 A6VE107

Bosch Rexroth A6VM107 A6VE107 motor specifications

The Bosch Rexroth A6VM107 A6VE107 is a variable displacement axial piston motor that offers high efficiency and reliability. This motor is ideal for applications that require high power and stable operation in harsh environments.

Technical specifications of Bosch Rexroth A6VM107 A6VE107:

• Working volume:
  • Nominal: 53.5 cm³
  • Maximum: 107 cm³
• Working pressure:
  • Nominal: up to 40 MPa 400 bar
  • Maximum: up to 45 MPa 450 bar
• Maximum rotation speed: 2800 rpm
• Torque: up to 700 N m
• Weight: 35–40 kg
• Operating medium: Mineral oils (ISO VG 32–46) or other fluids compatible with HLP/HVLP
• Displacement adjustment: hydraulic or electro-hydraulic
• Application in special equipment: excavators, cranes, loaders, presses, road rollers, conveyors, machine tools, etc.

Hydraulic motor cross number: R992001729, R992001731, R992001765, R902209938, R902206650, R909604659, R902221947, R902035353, R902206644, R902209956, R902063884, R902063883, R902206633, R902204660, R902223111, R909605842, R902067833, R902206604, R902212029, R902038558, R902121526, R902072540, R902207847, R902209935, R902224456, R902124270, R902209945, R902209907, R902209961, R902233906, R902117931, R902151712, R902261439, R902245636, R902009826, R902102697, R902124072, R902224098, R902094976, R902099067, R902054926, R902126848, R902206615, R902207969, R902102701, R902215356, R902209964, R902209913, R902207970, R902231415, R902139806, R902207765, R902209995, R902226299, R902206680, R902000391, R902065940, R902100131, R902035493, R902209998, R902243316, R902024957, R902212034, R902208894, R902206634, R902060251, R902033308, R902206620, R909429952, R902200471, R902101596, R902090274, R902094859, R902206629, R902153654, R902092751, R902063741, R902207972, R902241804, R902209920, R902101199, R902054183, R902134669, R902124213, R902115535, R902011737, R909604558, R902067523, R902206658, R902207854, R902088821, R902101080, R902207763, R902227963, R902212016, R902054360, R902227914, R902227913, R902206617, R902207971, R902209911, R902075445, R902126833, R902239855, R902021689, R902212022, R902207762, R902211628, R902018187, R902075353, R902060429, R902207878, R909610107, R909410429, R992001643, R909922089, R902070702, R909610271, R909650146, R909610421, R902258555, R909604909, R902258574, R902221491, R992001068, R992000013, R992000256, R992000193, R992000538, R992000398, R992000048, R992000071, R992000327, R992000014, R992000221, R992000596, R992000586, R992000386, R992000482, R992000464, R992000254, R992001043, R992000556, R992000250, R992000395, R992000055, R992000650, R909921384, R909604521, R992000382, R992000383, R902090266, R992000621, R902119872, R992000423, R992000355, R902166284, R902166273, R902166257, R902166210, R902166182, R902166008, R902095779, R902166430, R902002099, R902221166, R992001314, R902221109, R902221065, R902221026, R902166953, R992000354, R992000106, R992000243, R992000102, R992000101, R992000100, R992001029, R992001333, R992000107, R902088948, R992001036, R992000235, R902276493, 31Q4-41010, 31Q4-41300, 31N5-43000, 31N5-43001, 31N5-43002, XJDD-00233, XJDD-00230, XJDD-00240, XJDD-00241, XJDD-00232, XJDD-00918, XJDD-00919, XJDD-00234, XJDD-00235, XJDD-00236, XJDD-00237, XJDD-00238, XJDD-00239, XJDD-00231, R902027135, R909611140, R902035318, R902166714, R902078846, R902057395, R992000314, R902084454, R902207869, R902139577, R902102502, R902166866, R902070719, R902077189, R902138361, R992001319, R909610632, R902166235, R902047046, R902119778, R909611333, R902088730, R902119937, R902139655, R902099100, R902014137, R902121993, R902260282, R902101301, R902117914, R902096754, R902068516, R902057387, R902221393, R902031572, R902082065, R902084245, R902092839, R902092328, R992000419, R902033216, R902101927, R902040333, R902068745, R902092051, R902166652, R902024833, R902092156, R902009759, R902155020, R902096663, R902057398, R909604200, R902117896, R902126550, R902016681, R902060350, R992000010, R902092052, R909610611, R902092725, R902102883, R902073652, R902024734, R902080570, R902092327, R902138363, R902057396, R902207769, R902092207, R902221161, R902092854, R902139803, R902077157, R902080929, R902107858, R902063713, R902036515, R909441882, R909429529, R909605929, R902047069, R902092767, R902018062, R902092382, R902084467, R902138365, R902208572, R902033370, R902207807, R902084132, R902006671, R902092872, R902099381, R902038535, R902206606, R902212003, R902101873, R909604870, R902077493, R902031859, R902027270, R902119503, R909604372, R902107874, R902101334, R902092125, R902052339, R902086739, R909610612, R902088587, R902130706, R902102678, R992001563, R992001740, R902082139, R902077010, R902092603, R902124387, R909605880, R902139512, R902016519, R902166857, R909604375, R902080945, R992000223, R902014478, R902088689, R902134530, R902206612, R902027423, R909605875, R902009879, R902009730, R909611093, R902092057, R902092915, R902014159, R902107795, R902166968, R902009620, R909605744, R902057388, R902070930, R902096873, R902107857, R902009728, R902024829, R909604374, R902132140, R902031922, R902057392, R902075495, R902063868, R902092163, R902082381, R902134528, R902156040, R909605943, R902075242, R902101729, R902057393, R902092814, R902092897, R902054925, R902057390, R902207797, R902101335, R902092742, R902031809, R909605788, R909610613, R992001562, R902215113, R909611073, R902035449, R902070717, R902101306, R902078568, R902009646, R902134744, R902092745, R902024724, R902038799, R909605930, R902095999, R902057385, R902138258, R909605386, R902065534, R902096607, R902050612, R909610609, R902092158, R902221095, R909442441, R902166753, R902077008, R902070639, R909604373, R902068716, R902065587, R902119548, R992001712, R902077495, R902065575, R902221384, R902132308, R909921954, ZGAR-00421, XJDD-00914, ZGAR-00422, XJDD-00915, ZGAR-00433, XJDD-00928, ZGAR-00431, XJDD-00926, ZGAR-00423, XJDD-00916, ZGAR-00407, XJDD-00900, ZGAR-00424, XJDD-00917, ZGAR-00420, XJDD-00913, ZGAR-00419, XJDD-00912, XJDD-00212, XJDD-00894, XJDD-00683

Installed in the model:

• Hyundai R140W-7, R140W-7A, R140W-9, R140W-9A, R140W-9S, R170W-7, R170W-7A, R170W-9S, R180W-9S
• O&K RH 12.5
• Liebherr L509
• Fiat-Hitachi EX165W

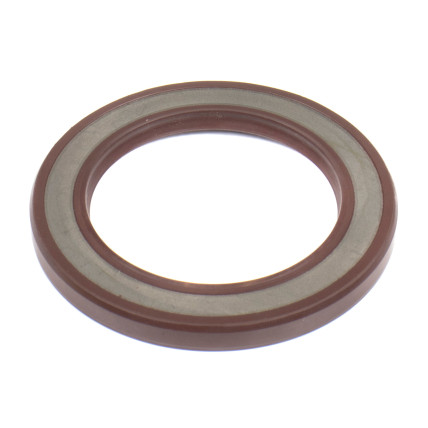

The company "Aspect Plus" offers a wide range of spare parts for repairing the Bosch Rexroth A6VM107 A6VE107 hydraulic motor.
