HMGF35 HMV116

Characteristics of the Hitachi HMGF35 (HMV116) motor

The HMGF35 (HMV116) hydraulic motor is an axial piston motor with a slant block used in heavy mobile equipment. This model is characterized by high power, reliability and adaptability to difficult working conditions such as high loads and variable operating modes.

Technical specifications of Hitachi HMGF35 (HMV116):

• Type: Axial piston motor with inclined block and variable displacement.
• Maximum working volume: 116 cm³ per revolution
• Working pressure
  • Nominal pressure: 31.5 MPa 315 bar
  • Maximum pressure: 35 MPa 350 bar
• Rotation speed:
  • Maximum: up to 2000 rpm
• Weight: 60–80 kg, depending on configuration
• Application in special equipment: large excavators, bulldozers, drilling rigs, heavy trucks, crushers, mining machines, etc.

Hydraulic motor cross number Hitachi HMGF35 (HMV116): 9133918, 9149085, 9146471, 9149087, 1014547, 2026713, 4198783, 4198998, 4222980, 4178173, 4260561, 4116290, 2034880, 8050658, 3064069, 4179181, 4198956, 3037401, 3032432, 4246784, 3047473, 4232766, 4232767, 3047472, 4248871, 4396017, 4506415, 9145186, 9149086, M341650, 3064074, 4266256, 4364104, 2034875, 4234628, 3052403, 4255238, 4262561, 9130524, 4260308, 4332406, 4265579, M341225, 9134112, 4506418, 9134109, 4506408

Installed in the model: EX215, EX200-2 EX200-2m EX200-3 EX200-3C EX200-3E EX200-3m EX200-5 EX200-5 JPN EX200-5HG EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200K-2 EX200K-2m EX200K-3 EX200K-3m EX200LCK-2m EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX220-2 EX220-3 EX220-5 EX220-5 JPN EX220-5HHE EX225USR(LC) EX225USRK(LC) EX230-5 EX230H-5 JPN EX230K-5 EX230LC-5HHE HC2410 HC2410 HR1200SG HR1200SGM RX2300 ZX200

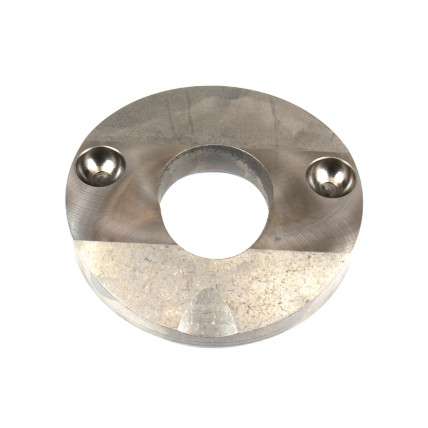

The company "Aspect Plus" offers a wide range of spare parts for repairing the Hitachi HMGF35 (HMV116) hydraulic motor.
