K3V180

Kawasaki K3V180 hydraulic pump specifications

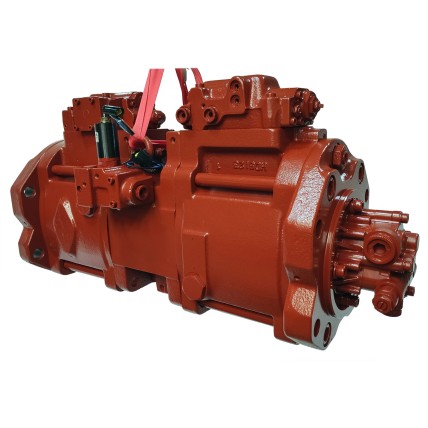

The Kawasaki K3V180 hydraulic pump is a variable displacement axial piston pump with a swash plate designed for use in mobile machinery, including excavators, loaders and other construction equipment.

Technical specifications of the Kawasaki K3V180 hydraulic pump:

• Type: Swash plate axial piston pump
• Displacement: 180 cm³/rev
• Nominal pressure: 34.3 MPa (343 bar)
• Maximum pressure: 39.2 MPa (392 bar)
• Maximum rotation speed (self-priming): 2000 rpm
• Weight: about 195 kg
• Application: Excavators, Construction machinery, Agricultural machinery, Mining machinery, etc.

Design features of the Kawasaki K3V180 hydraulic pump:

• Configurations: single-section, tandem and parallel
• Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
• Additional options: presence or absence of PTO (power take-off shaft)

The Kawasaki K3V180 hydraulic pump has the following advantages::

• High reliability: durability and wear resistance
• Compact: easy to install in limited space
• Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
• High performance: stable oil supply even under high loads

Hydraulic pump cross number: 2201-1101B, 2401-1251A, 2401-9261, 2401-9261A, 2401-9261B, 2401-9263, 2401-9275, 401-00040A, 401-00040B , 401-00071, 401-00071A, 401-00071B, 2401-9193, 2401-9165A, 31N9-10010, 31Q9-10010, 31NA-10010, 31NA-10020, 31QA-10010,  31Q9-10030, 31E5-04010, 31QA-10050, 31Q9-19010, 31QA-10021, 31N9-10050, 31NA-10021, 31NA-10030, 31EH-03010, 31KA-10010, 34E7-00250, VOE14500380, VOE14512271, VOE14516492, VOE14520050, VOE14531412, VOE14531591, VOE14549798, VOE14566480, VOE14566659, VOE14616188, VOE14616199, VOE14638306, VOE14638307, VOE14638308, SA7220-00700, SA1142-06230, VOE14531857, 1042-04752, 9129693, 9168808, 4643505, 087-4750, KTJ10810, KTJ2030, KTJ2332, LS10V00001F5, 7220-00300, SA7220-00300, SA1042-04752, 14508164, 4427272, 4654617, 4689079

Installed in the model:

• DAEWOO-DOOSAN: S330LC-V, S360LC-V, S400LC-V, S450LC-V, S320LC, S330LC-3, S400LC-3, S450LC-3
• HITACHI: EX400-3, EX400-5, EX450-5, EX450H-5, EX3600-5, EX8000.
• HYUNDAI: R320LC-7, R320LC-7A, R320LC-9, R360LC-7, R370LC-7, R380LC-9, R335LC-9, R320LC-7HW, R320LC-7AHW, R335-7, R, R360LC-7A320LC-3, R430LC-9, R380LC-9H, RD340LC-7, RD320LC-7, R3700LC-7, R360C-9, R3600LC-7, R375-7, R3600LC-3, R360LC-3,  R360LC-9, R380LCF, R3700LC-7, R380LC-9, R390LC-9 R4500LC-3 R4500-3A R4500LC R450LC
• JCB: JS300LC, JS300LX
• VOLVO: EC330B, EC340D, EC360, EC360B, EC360B LC, EC360C, EC380D, EC460C, FC3329C, EC360BP,  EC360CP, EC330C, EC360BR, MX452, MX455, EC450, EC450B, EC460B
• SAMSUNG: MX352, MX14LC, SE350LC-2, MX365
• CASE: CX350B, CX460B, CX470B CX450LC
• SUMITOMO: SH450LC-5A, SH460LC-5A SH450-3
• CATERPILLAR: CAT350B
• KOBELCO: SK400-5 SK400-6 SK430-5 SK430-6 SK450-5 SK450-6 SK460-5 SK460-6 SK480-5 SK480-6 SK420LC-3 SK430LC-3 SK450LC-3 SK460-3
• KCP: KCP33RX170 KCP32ZX170 KCP31ZX5120 KCP28ZX120 KCP24ZX100 KML2210 KTP120H KTP90H

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K3V180 hydraulic pump.
