Model: 2494
Pre-Order

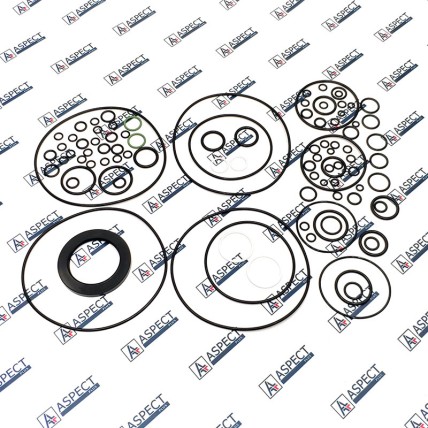

Spare part: Seal kit pump Kawasaki XJBN-01123 YBS Part number: XJBN-01123 Cross-Number: 334/E2506 Us..
95.60 $
excl. VAT 95.60 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 2691
Pre-Order
Spare part: Shoe plate Kawasaki XJBN-00085 HANDOK Part number: XJBN-00085 Cross-Number: XJBN-00085, ..
27.67 $
excl. VAT 27.67 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 6290
Pre-Order
Spare part: Spring of Ball guide Kawasaki XJBN-00944 FLUTEK Part number: XJBN-00944 Cross-Number: Us..
3.30 $
excl. VAT 3.30 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 2796
Pre-Order

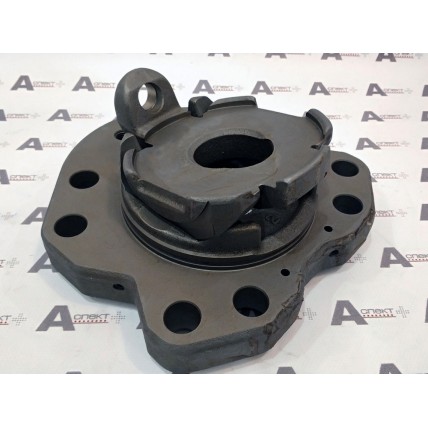

Spare part: Swash plate with Support Kawasaki XJBN-00942 HANDOK Part number: XJBN-00942 Cross-Number..
247.80 $
excl. VAT 247.80 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kawasaki K5V140 hydraulic pump specifications
The Kawasaki K5V140 hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in mobile equipment, in particular in medium and large class excavators.
Technical specifications of the Kawasaki K5V140 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 140 cm3/rev
- Nominal pressure: 343 bar (34.3 MPa)
- Maximum pressure: 392 bar (39.2 MPa)
- Maximum rotation speed (self-priming): 2160 rpm
- Maximum rotation speed (with increased inlet pressure): 2500 rpm
- Configurations: single-section, tandi or parallel
- Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
- Weight: approximately 65 kg
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 200–1000 cSt (systi must be warmed up before starting)
- Applications: injection machines, fans, excavators, loaders, cranes, tractors, combines, garbage trucks
Design features of the Kawasaki K5V140 hydraulic pump:
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump models: K5V140DTP-9T1L-17T, K5V140DTP-OE01-17T, K5v140dtp-1k9r-Ytok-Hv, K5V140DTP-YT6K
Hydraulic pump cross number: 215/13399, 31N8-1001, 31N8-10020, 31N8-10060, 31N8-10070, 31N8-10080, 31Q8-10010, 31Q8-10030, 332/J9613, 400914-00016, 400914-00395, 401-00225A, 401-00226B, 401-00424, 401-00424A, 401-00424B, 401-00424C, KSJ15460, KSJ1857, KSJ1998, KSJ2851, VOE14571504, XJBN-00963, XJBN-00996, XJBN-00997, VOE14531594, VOE14632317, 31Q8-15010, 31Q8-19010, 31N8-10030, K1029736B, K1006550C, 400914-00395A, 400914-00395B LC10V00009F2, LC10V00009F3, 72215457 LC10V00029F2, 84223606, 87362960, LC10V00029F4, LC10V00029F1, 87659454, LC10V00033F1, LC10V00009F1, 1006550A, 72208819, LC10V00020F1, 334/J4795, 400914-00489, 332/J9614, 20/925600.
Installed in the model:
- CASE: CX330C, CX350C
- DAEWOO-DOOSAN: DX300LC-3, S300LC-V, SL300, DX260LCA, DX300-3, DX300LC-5, DX300-7
- HYUNDAI: R290LC-7A, R290LC-7H, R290LC-9, R305LC-7, R300LC-9, R300W-9MH, R290LC-7G, R290LC-7AHW, R2900LC-7C, R2900LC-7HW
- JCB: JS290XD, JS300, JS300LC, JS300LX
- VOLVO: EC240C, EC240BLNC, EC240CLR, EC250DB
- SANY: SY235
- New Holland Kobelco: E385, E385LC, E385B, SK330-8, SK350-8, SK330LC-8, SK350LC-8, SK350-9 SK320-6E SK330-6E -7 SK320-6E SK330LC-7 SK350LC-7 SK300LC-7 SK370-7 E335B E385 E385B
- Linkbelt: LX330
- SUMITOMO: SH290-5
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V140 hydraulic pump.
