Cart
Your shopping cart is empty!
It's never too late to make things right :)
Sort By:
Most Viewed
Model: 3809
Pre-Order

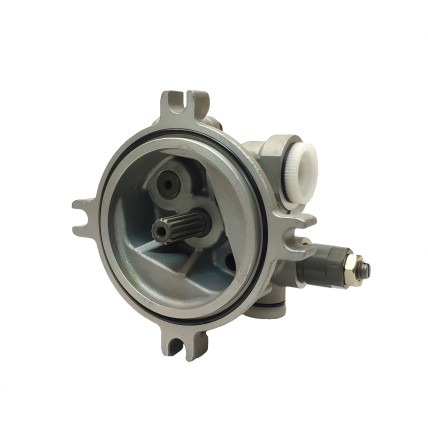

Spare part: Gear pump Kawasaki XJBN-00655 HANDOK Part number: XJBN-00655 Cross-Number: Use in: Pleas..
165.13 $
excl. VAT 165.13 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 16626
Pre-Order

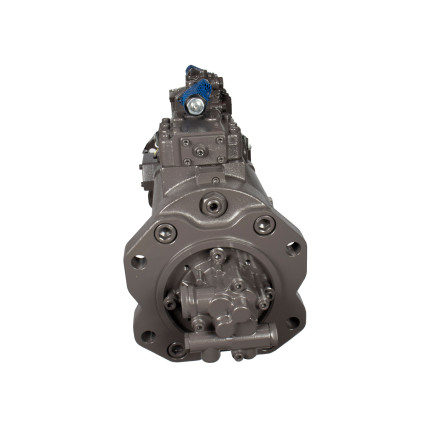

Spare part: Hydraulic Pump assembly Kawasaki VOE14632316 SKS Part number: VOE14632316 Cross-Number: ..
5,079.40 $
excl. VAT 5,079.40 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 10354
Pre-Order
Spare part: Hydraulic Pump Cover (rear) Kawasaki VOE14519957 HANDOK Part number: VOE14519957 Cross-N..
117.60 $
excl. VAT 117.60 $
Hydraulic housing parts:
Hydraulic housing parts
Most Viewed
Model: 5325
Pre-Order
Spare part: Needle Bearing Kawasaki 0978503 AFM Part number: 0978503 Cross-Number: XJBN-00673, VOE14..
56.70 $
excl. VAT 56.70 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 4258
Pre-Order

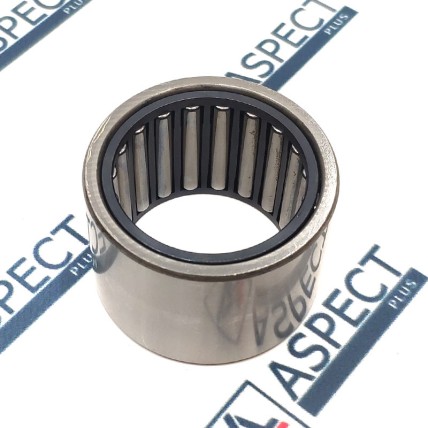

Spare part: Needle Bearing Kawasaki SA8230-26710 JNS Part number: SA8230-26710 Cross-Number: VOE1451..
73.10 $
excl. VAT 73.10 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 5129
Pre-Order
Spare part: Piston shoe Kawasaki VOE14596492 HANDOK Part number: VOE14596492 Cross-Number: Use in: P..
24.05 $
excl. VAT 24.05 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10379
Pre-Order
Spare part: Pressure Sensor Hitachi 4436271 4703324 4355012 4339754 4248773 4668254 PRESSURE SENSOR ..
224.90 $
excl. VAT 224.90 $
Sensors, switches, gauges, glow plugs:
Sensors, switches, gauges, glow plugs
Most Viewed
Model: 10357
Pre-Order
Spare part: Pump Housing (Casing) Kawasaki XJBN-00026 HANDOK Part number: XJBN-00026 Cross-Number: V..
493.30 $
excl. VAT 493.30 $
Hydraulic housing parts:
Hydraulic housing parts
Most Viewed
Model: 3810
Pre-Order
Spare part: Roller Bearing 0816212 Kawasaki K3V140, K3V140, K3V180, K3VG180, K5V160, K5V180, K5V200D..
84.00 $
excl. VAT 84.00 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 8473
Pre-Order
Spare part: Seal kit pump Kawasaki VOE14577804 YBS Part number: VOE14577804 Cross-Number: Use in: Pl..
95.60 $
excl. VAT 95.60 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 3896
Pre-Order

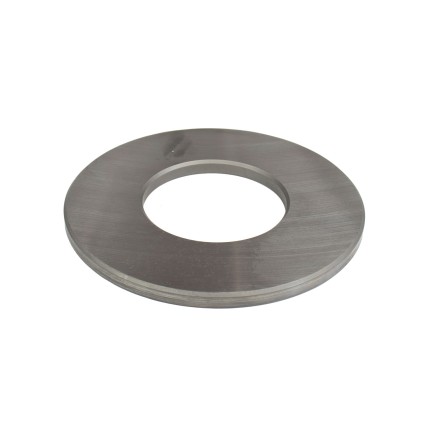

Spare part: Shoe plate Kawasaki XJBN-00023 HANDOK Part number: XJBN-00023 Cross-Number: 0451018, SA7..
31.53 $
excl. VAT 31.53 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 4194
Pre-Order
Spare part: Spring of Ball guide SA7223-00180 Kawasaki K3V180, K3VG180, K5V160, K5V200, K7V100, K7V1..
2.04 $
excl. VAT 2.04 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 11119
Pre-Order
Spare part: Spring of Ball guide XJBN-00541 Kawasaki K3V180, K3VG180, K5V160, K5V200, K7V100, K7V125..
2.70 $
excl. VAT 2.70 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 11629
Pre-Order

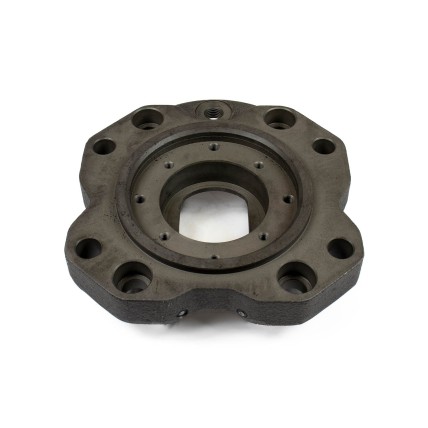

Spare part: Support Kawasaki K5V200DT SKS Part number: Cross-Number: Use in: Kawasaki K5V200DT Use i..
119.23 $
excl. VAT 119.23 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 4585
Pre-Order

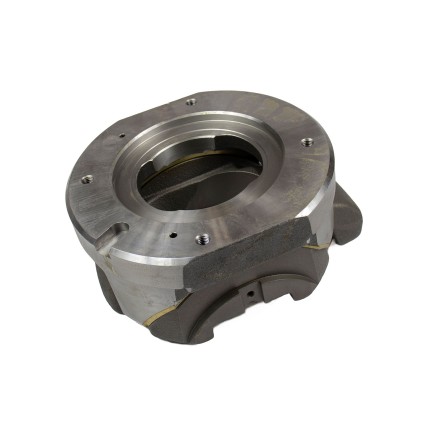

Spare part: Swash plate with Support Kawasaki 20/950818 and 20/950827 sensor type HANDOK Part number..
530.91 $
excl. VAT 530.91 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kawasaki K5V160 hydraulic pump specifications
The Kawasaki K5V160 hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in mobile equipment, in particular in medium and large class excavators.
Technical specifications of the Kawasaki K5V160 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 160 cm3/rev
- Nominal pressure: 343 bar
- Maximum pressure: 392 bar
- Maximum rotation speed (self-priming): 2000 rpm
- Maximum rotation speed: 2350 rpm (with impeller)
- Configurations: single-section, tandi or parallel
- Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
- Weight: approximately 65 kg
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 200–1000 cSt (systi must be warmed up before starting)
- Applications: garbage trucks, tractors, combines, excavators, loaders, cranes, injection machines, fans
Design features of the Kawasaki K5V160 hydraulic pump:
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump models: K5V160DP-14JR-2N5X-V, K5V160dp-1vwr-Zn7X-V
Hydraulic pump cross number: 14568923, 14632316, 14639133, 31Q9-10080, 14567427, KSJ12240, KSJ16730, 11933371, 322-8733, 315-4393, 283-6116, 266-7954, 369-9602, 342-1880, 332/K5017, VOE14568923, VOE14567427, 333/K7891, 095-1787, 206-9297, 200-3289, 200-3297, 206-9285, 095-1795, 200-3290, 206-9290, 200-3292, 210-0834, 7Y-4274, 206-9292, 197-0226, 206-9286, 210-0835, 295-9692, 7I-8084, 160-8758, 206-9287, 200-3272, 200-3285, 7I-8177, 190-7674, 200-3283, 210-9435, 200-3286, 200-3294, 234-4539, 200-3287, 200-3273, 200-3277, 200-3288, 200-3275, 209-5875, 200-3280, 200-3279, 200-3278, 200-3281, 200-3296, 210-9434, 200-3282, 200-3274, 200-3276, 096-5516, 200-3298, 200-3271, 200-3284, 8T-1158, 093-1323, 8C-3347, 096-5400, 095-0965, 7I-8164, 200-3295, 274-2490, 246-9867, 247-8841, 242-6920, 247-8985, 247-8729, 242-6919, 8T-4131, 6V-8200, 7I-8166, 109-1296, 7I-8172, 242-6914, 247-8712, 7I-8152, 109-1294, 7I-8171, 242-6915, 095-0966, 242-6918, 264-8266, 249-1306, 242-6916, 110-5525, 153-4906, 295-9656, 7I-8154, 242-6912, 242-6913, 289-8172, 311-9548, 247-8725, 095-0882, 247-8786, 242-6917, 095-0944, 249-6657, 289-8174, 289-8175, 6V-5204, 247-8718, 289-8173, 8T-0343, 8T-4241, 247-8787, 247-8719, 259-0835, 295-9658, 259-0832, 247-8715, 295-9659, 295-9657, 249-1307, 247-8713, 8T-9080, 225-4516, 249-6670, 247-8720, 247-8717, 095-0929, 247-8726, 259-0831, 206-9291, 225-4518, 295-9660
Installed in the model:
- VOLVO: EC290CP, EC300DL, EC300DB, EC350DB, ECR305C, PL30005D.
- HYUNDAI: R330LC-9S
- SUMITOMO: SH330-A5,SH350-A5
- SANY: SY330LC
- DOOSAN: DX370
- CAT: 330C, 330D, 336C, 336D, CAT330CG, 568 FM LL, 568 FM, 336E L, 336E LN, 336E L, 336E L, 336E, 568 FM, 336E HVG, 336E, 6060, 6060 FS, RH340, RH75C
- XCMG: XE335C
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V160 hydraulic pump.
