Model: 17688
Spare part: Servo Piston Kawasaki 0820429 SKS
Part number: 0820429
Cross-Number: XJBN-00703,..
67.90 $
excl. VAT 67.90 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17606
Spare part: Shoe plate Kawasaki 295-9510 SKS
Part number: 295-9510
Cross-Number:
Use in:
..
66.80 $
excl. VAT 66.80 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17581
Spare part: Spring of Ball guide Kawasaki 295-9506 SKS
Part number: 295-9506
Cross-Number:
..
3.75 $
excl. VAT 3.75 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 17915
Spare part: Support Kawasaki 247-8725 SKS
Part number: 247-8725
Cross-Number:
Use in:
..
281.10 $
excl. VAT 281.10 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 6053
Spare part: Support Kawasaki XJBN-00687 SKS
Part number: XJBN-00687
Cross-Number: XJBN-00687..
289.35 $
excl. VAT 289.35 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 17605
Spare part: Swash plate (Cam rocker) Kawasaki 295-9521 SKS
Part number: 295-9521
Cross-Numbe..
168.72 $
excl. VAT 168.72 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 5277
Pre-Order
Spare part: EPR Valve Kawasaki 20/40C13-203A HANDOK
Part number: 20/40C13-203A
Cross-Number:..
258.97 $
excl. VAT 258.97 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 3343
Pre-Order
Spare part: EPR Valve Kawasaki XJBN-00382 HANDOK
Part number: XJBN-00382
Cross-Number: XJBN-..
171.17 $
excl. VAT 171.17 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 9168
Pre-Order
Spare part: Servo Piston Kawasaki 242-6914 HANDOK Part number: 242-6914 Cross-Number: Use in: Please..
49.70 $
excl. VAT 49.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 9170
Pre-Order
Spare part: Shoe plate Kawasaki 295-9510 HANDOK Part number: 295-9510 Cross-Number: Use in: Please m..
69.10 $
excl. VAT 69.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 9163
Pre-Order
Spare part: Spring of Ball guide Kawasaki 295-9506 HANDOK Part number: 295-9506 Cross-Number: Use in..
4.32 $
excl. VAT 4.32 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 9171
Pre-Order
Spare part: Swash plate with Support Left Kawasaki 295-9521 HANDOK Part number: 295-9521 Cross-Numbe..
531.54 $
excl. VAT 531.54 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 13460
Pre-Order

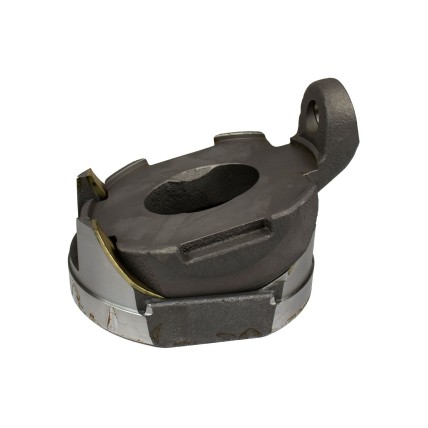

Spare part: Swash plate with Support Right Kawasaki K5V212DPH HANDOK Part number: Cross-Number: Use ..
531.54 $
excl. VAT 531.54 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 9173
Pre-Order
Spare part: Tilting Pin Kawasaki 50820438 HANDOK Part number: 50820438 Cross-Number: 50820438, XJBN-..
103.10 $
excl. VAT 103.10 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Kawasaki K5V212DPH hydraulic pump specifications
The Kawasaki K5V212DPH hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in heavy mobile equipment, in particular in large-class excavators.
Technical specifications of the Kawasaki K5V212DPH hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 214 cm3/rev
- Nominal pressure: 34.3 MPa (343 bar)
- Maximum pressure: 39.2 MPa (392 bar)
- Maximum rotation speed: 2200 rpm
- Weight: approximately 260 kg
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 10–1000 cSt
- Applications: tractors, combines, garbage trucks, injection machines, fans, excavators, loaders, cranes, etc.
Design features of the Kawasaki K5V212DPH hydraulic pump:
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump cross number: 434-8189, 222-8355, 295-9663, 259-0818, 194-8259, 266-7944, 2228355, 4348189, 2667944, 2959663, 2590818, 1948259, LS10V00016F1, LS10V00021F4, LS10v00021F3, LS10v00021F2, LS10v00021F1, 60344475, 60355586, VOE14644493, 14644493, 295-9693, 252-9167, 247-8985, 247-8729, 242-6919, 451-2184, 6V-8200, 7I-8166, 109-1296, 7I-8172, 242-6914, 247-8712, 295-9506, 109-1294, 7I-8171, 242-6915, 095-0965, 095-0966, 242-6918, 200-3292, 249-1308, 234-4539, 249-1306, 326-4415, 295-9518, 110-5525, 214-7568, 295-9510, 295-9504, 295-9505, 295-9521, 7I-8084, 7I-8164, 095-0882, 247-8786, 347-6530, 295-9695, 095-0944, 249-6657, 295-9508, 295-9509, 8T-4241, 295-9501, 295-9507, 096-5516, 8T-0343, 295-9502, 295-9516, 295-9503, 295-9500, 295-9511, 295-9499, 322-8736, 311-9506, 247-8715, 247-8721, 247-8730, 247-8944, 295-9694, 249-1307, 311-9505, 247-8719, 247-8725, 247-8713, 8T-9080, 249-6670, 295-9512, 247-8720, 247-8787, 247-8717, 095-0929, 247-8726, 295-9498, 206-9291, 295-9517, 295-9497, 342-1906, 247-8841, 249-6671, 225-4518
Installed in the model:
- CAT 345B 345D L 345C 349D 345D L VG 349D L 345D 349D
- KOBELCO SK480 SK485-8 SK460-8 SK460-9 SK500-8 SK500-9
- NEW HOLLAND KOBELCO E485 E485C
- XCMG XE470
- SANY SY500 SY600
- VOLVO EC480E
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V212DPH hydraulic pump.
