M2X210

Sort By:

Most Viewed

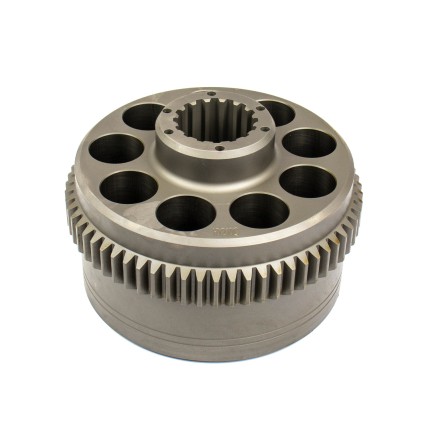

Cylinder block Rotor Kawasaki M2X210 HANDOK

Model: 3894

Pre-Order

Brand:: HANDOK

Spare part: Cylinder block Rotor Kawasaki M2X210 HANDOK Part number: Cross-Number: Use in: Kawasaki ..

380.70 $ excl. VAT 380.70 $

Main hydraulic units: Main hydraulic units

Most Viewed

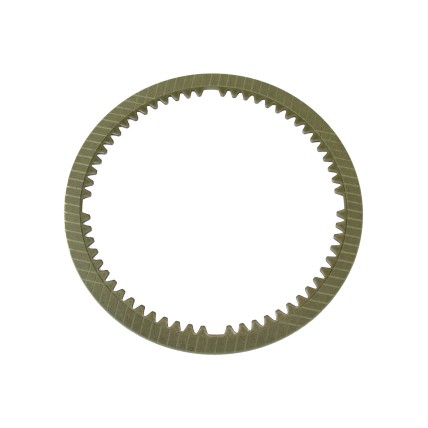

Friction plate Kawasaki 0365428 AFM

Model: 4024

Pre-Order

Brand:: AFTERMARKET

Spare part: Friction plate Kawasaki 0365428 AFM Part number: 0365428 Cross-Number: Use in: Please ma..

25.20 $ excl. VAT 25.20 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Pressure Relief Valve Kawasaki 0719602 AFM

Model: 8542

Pre-Order

Brand:: AFTERMARKET

Spare part: Pressure Relief Valve Kawasaki 0719602 AFM Part number: 0719602 Cross-Number: Use in: Hi..

192.00 $ excl. VAT 192.00 $

Valves and solenoids of hydraulic pumps: Valves and solenoids of hydraulic pumps

Most Viewed

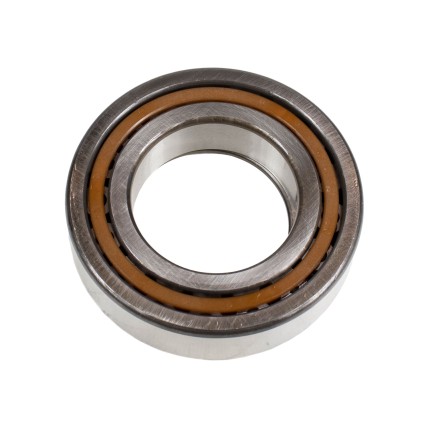

Roller Bearing Kawasaki 14640025 NTN

Model: 10604

Pre-Order

Brand:: NTN

Spare part: Roller Bearing Kawasaki 14640025 NTN Part number: 14640025 Cross-Number: R902603914, K90..

77.70 $ excl. VAT 77.70 $

Oil seals, bearings, gears of hydraulic pumps and motors: Oil seals, bearings, gears of hydraulic pumps and motors

Most Viewed

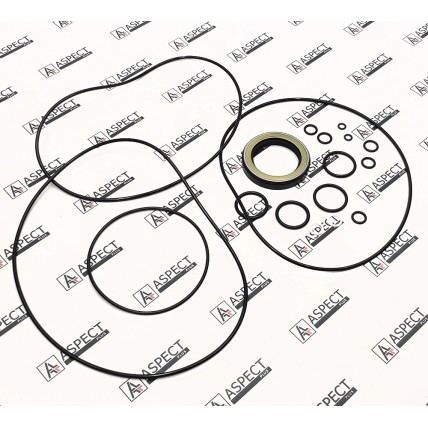

Seal kit motor Kawasaki K9004885 NOK KOREA

Model: 4252

Pre-Order

Brand:: AFTERMARKET

Spare part: Seal kit motor Kawasaki K9004885 NOK KOREA Part number: K9004885 Cross-Number: 0409219 U..

110.30 $ excl. VAT 110.30 $

Hydraulic seal kits: Hydraulic seal kits

Kawasaki M2X210 hydraulic motor specifications

The Kawasaki M2X210 hydraulic motor is a fixed displacement, swashplate axial piston motor designed for medium to large excavator slewing drives. It is part of the M2X series, which includes models with displacements from 63 to 210 cc.

Technical specifications of the Kawasaki M2X210 hydraulic motor:

Type: Fixed displacement axial piston motor with swash plate
Displacement: 210 cm³/rev
Maximum working pressure: 29.4 MPa (294 bar)
Maximum torque: up to 20,000 N m
Maximum rotation speed: up to 2,200 rpm
Brake release pressure: 2.3 MPa (maximum allowable - 4.9 MPa)

Design features of the Kawasaki M2X210 hydraulic motor:

Compactness: The rotating group, brake mechanism and valves are integrated into a single unit, which simplifies installation and maintenance.
High efficiency: Optimized design ensures stable operation under high loads.
Reliability: Built-in valves provide overload protection and stable system operation.

Hydraulic motor cross number: 4371768, 4637117

Installed in the model:

Hitachi: EX300-5 EX345USR(LC) EX350H-5 EX370-5M EX385USR ZX870-3
JCB: JS330 JS360 JS460

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M2X210 hydraulic motor.
