M5X130

Sort By:

Most Viewed

Shaft Seal 5I-8769 SKS

Model: 15883

In stock

Brand:: SKS Hydraulic

Spare part: Shaft Seal 5I-8769 SKS Part number: 5I-8769 Cross-Number: 03505511, 20/951517 Use in: Pl..

16.60 $ excl. VAT 16.60 $

Oil seals and belts: Oil seals and belts

Most Viewed

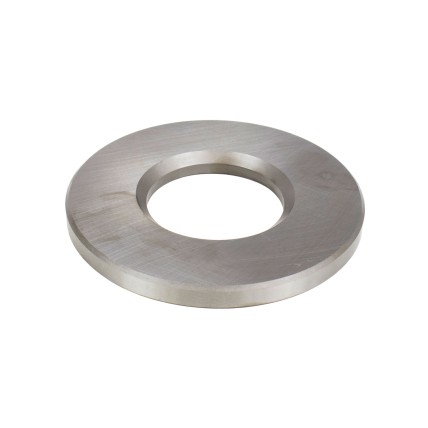

Shoe plate Kawasaki 0788808 SKS

Model: 10911

In stock

Brand:: SKS Hydraulic

Spare part: Shoe plate Kawasaki 0788808 SKS Part number: 0788808 Cross-Number: 0409211, VOE14529770,..

34.32 $ excl. VAT 34.32 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

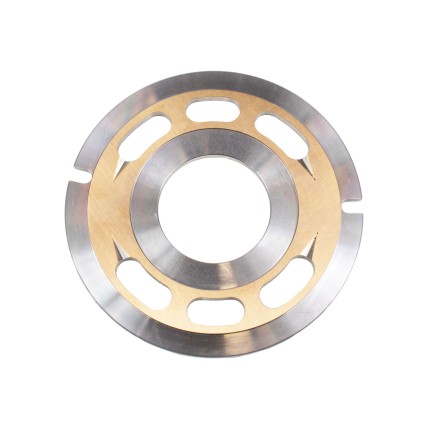

Valve plate Motor Kawasaki 0788809 SKS

Model: 10910

In stock

Brand:: SKS Hydraulic

Spare part: Valve plate Motor Kawasaki 0788809 SKS Part number: 0788809 Cross-Number: 20/951519, VOE..

66.86 $ excl. VAT 66.86 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

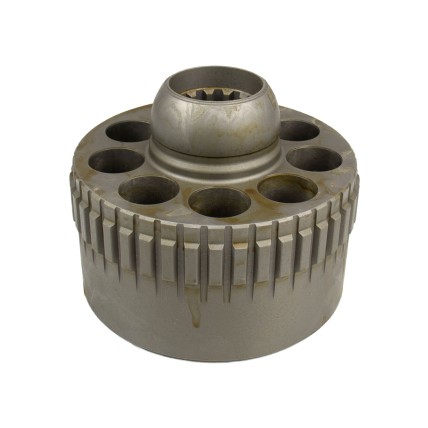

Cylinder block Rotor Kawasaki 0788805 HANDOK

Model: 3030

Pre-Order

Brand:: HANDOK

Spare part: Cylinder block Rotor Kawasaki 0788805 HANDOK Part number: 0788805 Cross-Number: 0409204,..

226.98 $ excl. VAT 226.98 $

Main hydraulic units: Main hydraulic units

Most Viewed

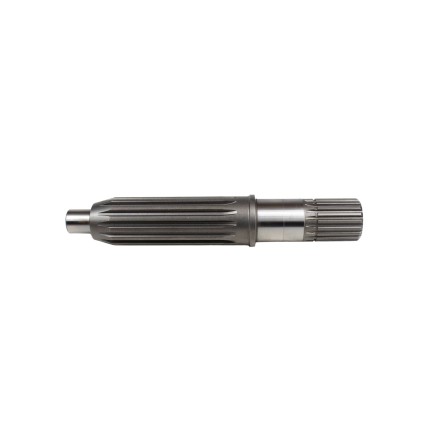

Drive Shaft Motor Kawasaki 0788804 HANDOK

Model: 3031

Pre-Order

Brand:: HANDOK

Spare part: Drive Shaft Motor Kawasaki 0788804 HANDOK Part number: 0788804 Cross-Number: VOE14529774..

65.68 $ excl. VAT 65.68 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

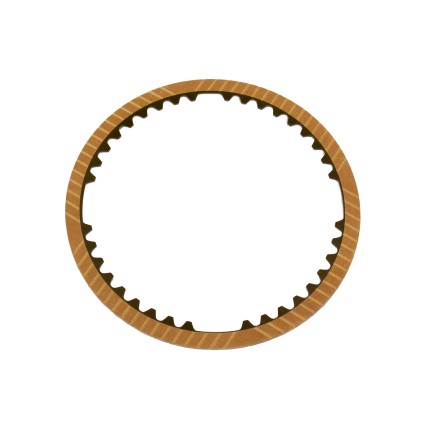

Friction plate Kawasaki 0788816 HANDOK

Model: 3032

Pre-Order

Brand:: HANDOK

Spare part: Friction plate Kawasaki 0788816 HANDOK Part number: 0788816 Cross-Number: VOE14529762 Us..

22.31 $ excl. VAT 22.31 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Friction plate Kawasaki M2X120, M5X130 AFM

Model: 9945

Pre-Order

Brand:: AFTERMARKET

Spare part: Friction plate Kawasaki M2X120, M5X130 AFM Part number: Cross-Number: Use in: Kawasaki M..

21.00 $ excl. VAT 21.00 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

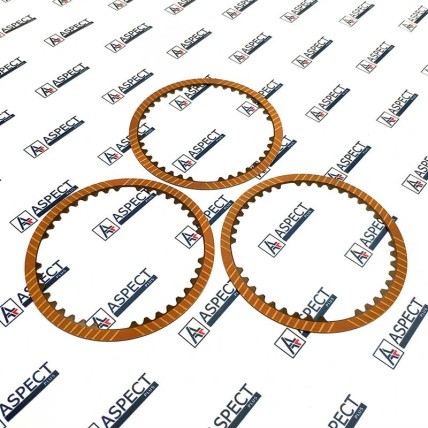

Friction plate Kawasaki M2X120, M5X130 HANDOK

Model: 10380

Pre-Order

Brand:: HANDOK

Spare part: Friction plate Kawasaki M2X120, M5X130 HANDOK Part number: Cross-Number: Use in: Kawasak..

35.20 $ excl. VAT 35.20 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

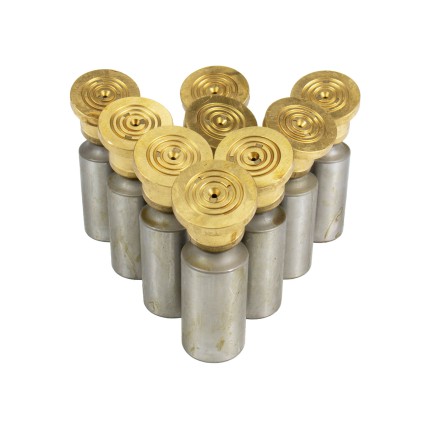

Piston shoe Kawasaki 0788801 HANDOK

Model: 3033

Pre-Order

Brand:: HANDOK

Spare part: Piston shoe Kawasaki 0788801 HANDOK Part number: 0788801 Cross-Number: 0409201, VOE14594..

19.56 $ excl. VAT 19.56 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

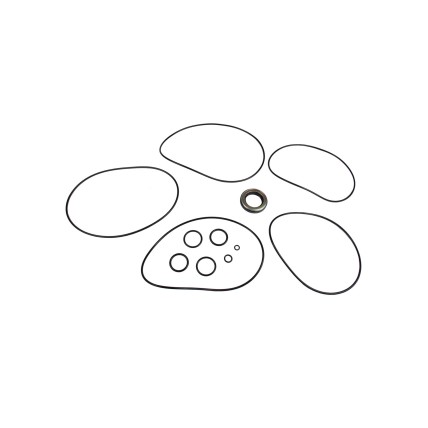

Seal kit motor Kawasaki 0814402 YBS

Model: 3028

Pre-Order

Brand:: YBS

Spare part: Seal kit motor Kawasaki 0814402 YBS Part number: 0814402 Cross-Number: 1119004 Use in: P..

86.00 $ excl. VAT 86.00 $

Hydraulic seal kits: Hydraulic seal kits

Most Viewed

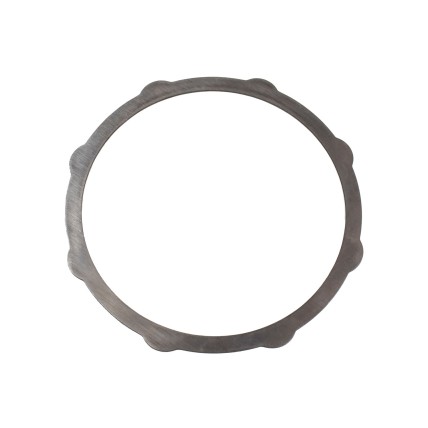

Separation plate Kawasaki 0788817 HANDOK

Model: 3034

Pre-Order

Brand:: HANDOK

Spare part: Separation plate Kawasaki 0788817 HANDOK Part number: 0788817 Cross-Number: VOE14529762 ..

38.20 $ excl. VAT 38.20 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Shaft Seal Hitachi 5I-8769 YBS

Model: 15057

Pre-Order

Brand:: YBS

Spare part: Shaft Seal Hitachi 5I-8769 YBS Part number: 5I-8769 Cross-Number: 03505511, 20/951517 Us..

11.50 $ excl. VAT 11.50 $

Oil seals and belts: Oil seals and belts

Most Viewed

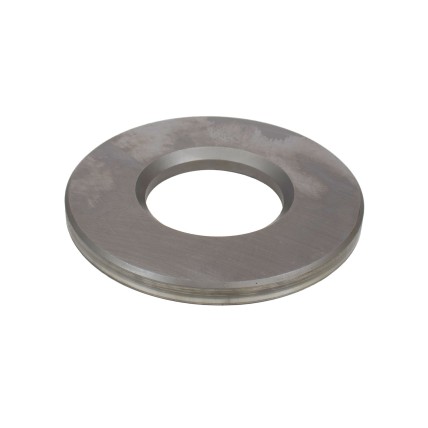

Shoe plate Kawasaki 0788808 HANDOK

Model: 3036

Pre-Order

Brand:: HANDOK

Spare part: Shoe plate Kawasaki 0788808 HANDOK Part number: 0788808 Cross-Number: 0409211, VOE145297..

29.29 $ excl. VAT 29.29 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

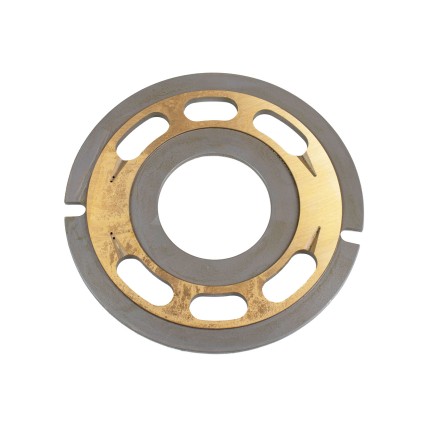

Valve plate Motor Kawasaki 0788809 HANDOK

Model: 3037

Pre-Order

Brand:: HANDOK

Spare part: Valve plate Motor Kawasaki 0788809 HANDOK Part number: 0788809 Cross-Number: VOE14529769..

84.76 $ excl. VAT 84.76 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Valve Relief Kawasaki 4644566 HITACHI

Model: 9989

Pre-Order

Brand:: HITACHI

Spare part: Valve Relief Kawasaki 4644566 HITACHI Part number: 4644566 Cross-Number: Use in: Hitachi..

1,250.00 $ excl. VAT 1,250.00 $

Valves and solenoids of hydraulic pumps: Valves and solenoids of hydraulic pumps

Kawasaki M5X130 hydraulic motor specifications

The Kawasaki M5X130 hydraulic motor is a fixed displacement axial piston motor with a swash plate, specifically designed for excavator slewing mechanisms and other heavy equipment. It is equipped with built-in valves (safety and feed) and a parking brake, which ensures compactness and reliability in operation.

Technical specifications of the Kawasaki M5X130 hydraulic motor:

Displacement: 129.2 cm³/rev
Nominal pressure: 32.4 MPa
Maximum pressure: 39.2 MPa
Maximum speed: 1,850 rpm
Maximum torque: up to 13,400 N m
Maximum flow rate: up to 240 l/min
Weight: approximately 47 kg
Brake control pressure: 2–7 MPa

Design features of the Kawasaki M5X130 hydraulic motor:

Compact design: The rotating group, brake mechanism and valves are integrated into a single unit, simplifying installation and maintenance.
High efficiency: Optimized design ensures stable operation under high loads.
Reliability: Built-in valves provide overload protection and stable system operation.

Hydraulic pump models: M5X130CHB-11A-03D/255-122

Hydraulic motor cross number: VOE14552686, VOE14550091, VOE14541069, VOE14550092, VOE14541030, VOE14612482, VOE14569651, 333/K7185, 20/925266, 191-5542, 334-9976, 334-9968, 158-8986, 158-8985, 515-6105, 489-3487, 4448202, 122-5318, 173-3444, 334-9981, 173-3443, 173-3441, 5I-8426, 5I-8417, 177-2584, 5I-8623, 126-2055, 173-3439, 095-0882, 173-3445, 446-7230, 3J-1907, 5I-8625, 173-3451, 173-3450, 173-3442, 191-5543, 173-3440, 173-3447, 094-1900, 095-1595, 7Y-4268, 7Y-4267, 7Y-5221, 173-3454, 4448202, 0788801, 0788802, 4470919, A811030, 0788803, 0814402, 0788804, 0788805, 0788806, 0788807, 0788808, 0788809, 0814401, 0409215, 0409216, 0625508, 0625509, 0365318, 0788811, 0788812, 0629404, 0692708, 0425115, 957366, 4506428, 0788813, 0788814, 0353321, 0425117, 0788815, 0788816, 0788817, 0788818, 0221509, 4506407, 0263019, 0628705, 0694825, 0788819

Installed in the model:

VOLVO EC200, EC210, EC220, EC235, EC460, ECR235, EW180, EW205, EW210, FC2121, FC2421
JCB JS200LC JS210LC JS220LC JS220LR JS220LR JS220S JS220SXDT JS235HD JS235HDT4 JS240 JS260 JS460 JS500
Kobelco SK200-8,SK210-8
XCMG XE215 XE235
CATERPILLAR 320D, 321D, 323D, 320C, 321C, 320D2, 320E, 323E, 323F, 319D, 318C, 318E, 320G, 320F, 320, 323D2, 325F, 320D3, 324D, 322C, 312D2, 313D2, 318D, 326D, 329D, 330D2, 336D, 336D2, 340D2, 349D, 349D2, 349D
Liugong LG200 LG225 CLG 922E
Hitachi MA200-G ZH200-A ZH200LC-A ZX160 ZX160W ZX160LCT ZX170W-3 ZX180W ZX190W-3 ZX160LC-3 ZX180LC ZX180LC-3 ZX200 ZX200-3 ZX200-5G ZX200-E ZX200LC-5G ZX200-X ZX210H ZX210H-3 ZX210H-3G ZX210H-5G ZX210K ZX210K-3 ZX210K-3G ZX210K-5G ZX210LCH-5G ZX210LCK-5G ZX210W ZX210W-3 ZX220W-3 ZX225US ZX225US-3 ZX225US-E ZX225USR ZX225USR-3 ZX225USR-E ZX225USRK ZX225USRK-3 ZX230 ZX240-3 ZX240-3G ZX240-5G ZX240H ZX240K ZX240LC-3G ZX240LC-5G ZX250H-3 ZX250H-3G ZX250H-5G ZX250K-3 ZX250K-3G ZX250K-5G ZX250LCH-5G ZX250LCK-5G ZX250W-3 ZX260LCH-3G ZX450LC-3-DH ZX450LC-3-DH

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M5X130 hydraulic motor.
