Sort By:
Most Viewed
Model: 10919
Spare part: Shoe plate Kawasaki 0816209 SKS Part number: 0816209 Cross-Number: VOE14596316, 188-4167..
34.68 $
excl. VAT 34.68 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 8125
Spare part: Swash plate (Cam rocker) Kayaba LQP0030 SKS Part number: LQP0030 Cross-Number: LPQ0030 U..
218.26 $
excl. VAT 218.26 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 10918
Spare part: Valve plate Motor Kawasaki 0816210 SKS Part number: 0816210 Cross-Number: 0816210, 204-2..
107.23 $
excl. VAT 107.23 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 2291
Pre-Order

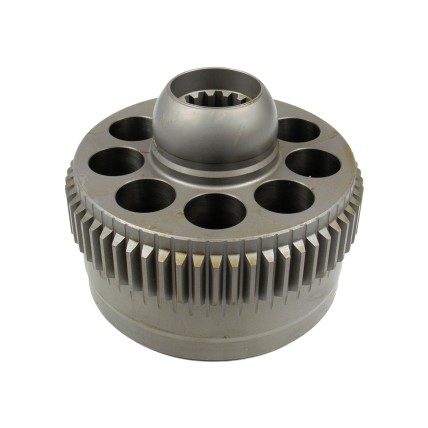

Spare part: Cylinder block Rotor Kawasaki 0816206 HANDOK Part number: 0816206 Cross-Number: VOE14596..
344.60 $
excl. VAT 344.60 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 2077
Pre-Order
Spare part: Piston shoe Kawasaki VOE14596316 HANDOK Part number: VOE14596316 Cross-Number: VOE145963..
21.00 $
excl. VAT 21.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3849
Pre-Order

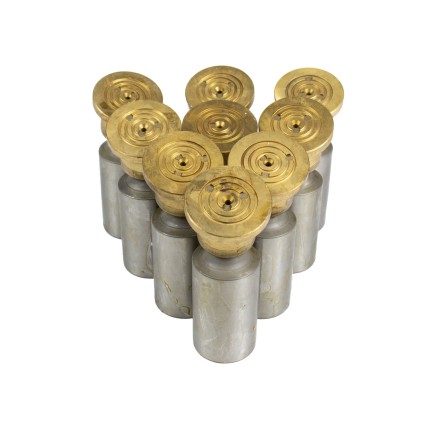

Spare part: Piston shoe Kawasaki XKAH-00154 HANDOK Part number: XKAH-00154 Cross-Number: 0365301, XK..
20.95 $
excl. VAT 20.95 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 2078
Pre-Order

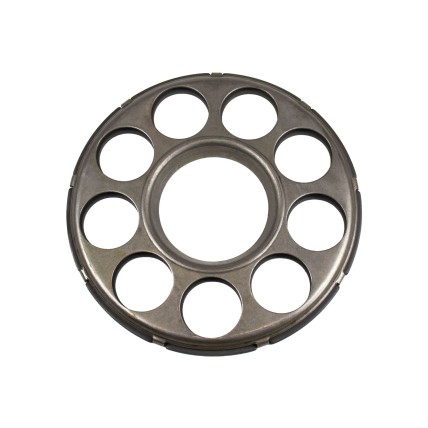

Spare part: Retainer Plate and Spring Plate Kawasaki 0816208 and 0816207 HANDOK Part number: 0816208..
53.16 $
excl. VAT 53.16 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10916
Pre-Order

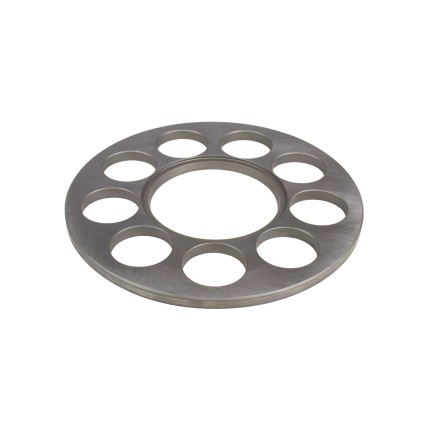

Spare part: Retainer Plate Kawasaki XKAH-00152 SKS Part number: XKAH-00152 Cross-Number: XKAH-00152,..
28.62 $
excl. VAT 28.62 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10917
Pre-Order

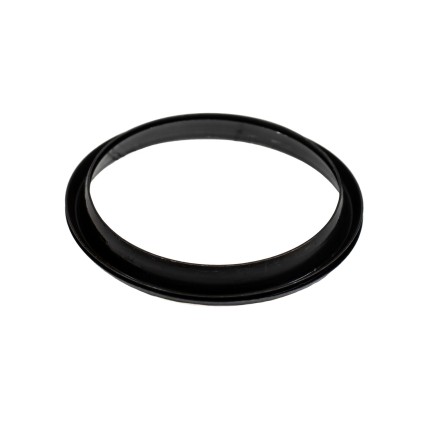

Spare part: Retainer Spring Kawasaki 0816208+0816207 SKS Part number: 0816208+0816207 Cross-Number: ..
7.60 $
excl. VAT 7.60 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 3810
Pre-Order
Spare part: Roller Bearing 0816212 Kawasaki K3V140, K3V140, K3V180, K3VG180, K5V160, K5V180, K5V200D..
84.00 $
excl. VAT 84.00 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 2079
Pre-Order
Spare part: Seal kit motor Kawasaki VOE14601385 NOK AFM Part number: VOE14601385 Cross-Number: 08162..
84.00 $
excl. VAT 84.00 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 4248
Pre-Order
Spare part: Seal kit motor Kawasaki VOE14601385 NOK KOREA Part number: VOE14601385 Cross-Number: 081..
62.00 $
excl. VAT 62.00 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 10914
Pre-Order

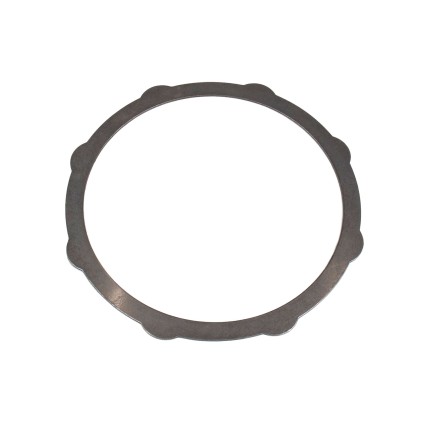

Spare part: Separation plate Kawasaki 0816216 SKS Part number: 0816216 Cross-Number: VOE14594770, 18..
26.33 $
excl. VAT 26.33 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 2811
Pre-Order

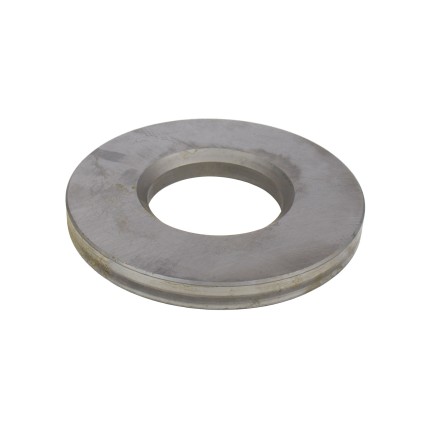

Spare part: Shoe plate Kawasaki 0816209 HANDOK Part number: 0816209 Cross-Number: VOE14596316, 188-4..
44.10 $
excl. VAT 44.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 1570
Pre-Order

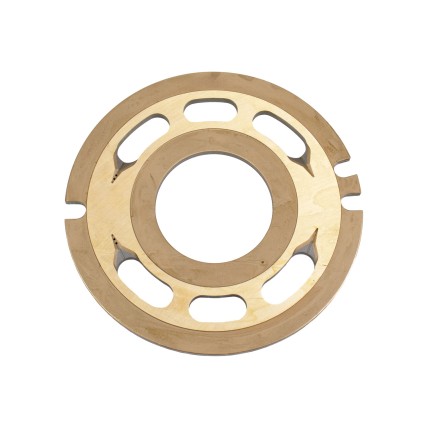

Spare part: Valve plate Motor Kawasaki 0816210 HANDOK Part number: 0816210 Cross-Number: XKAH-00150,..
133.70 $
excl. VAT 133.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kawasaki M5X180 hydraulic motor specifications
The Kawasaki M5X180 hydraulic motor is a fixed displacement axial piston swash plate motor designed for swing mechanisms in medium to large excavators. It is part of the M5X series, which includes models with displacements from 50 to 250 cc.
Technical specifications of the Kawasaki M5X180 hydraulic motor:
- Displacement: 180.1 cm3/rev
- Nominal pressure: 32.4 MPa
- Maximum pressure: 39.2 MPa
- Maximum speed: 1,680 rpm
- Maximum flow rate: up to 240 l/min
- Maximum torque: up to 16,500 N m
- Weight: approximately 60 kg
- Brake control pressure: 2–7 MPa
Design features of the Kawasaki M5X180 hydraulic motor:
- Compact design: The rotating group, brake mechanism and valves are integrated into a single unit, simplifying installation and maintenance.
- High efficiency: Optimized design ensures stable operation under high loads.
- Reliability: Built-in valves provide overload protection and stable system operation.
Hydraulic pump models: M5X180CHB-12A, M5X180CHB-10A
Hydraulic motor cross number: VOE14598751, VOE14577125, 4616985, 4484557, 4621174, 4696964, 4708204, 4439418, 4635680, 4419718, 4616985, 4698624, LC15V00022F2, LC15V00022F1, 200-3373, 334-9980, 179-9774, 492-3305, 188-4175, 60180836, 60180836R, 60180837R, VOE14596315, SA8230-25950, VOE14596320, VOE14501799, VOE14600785, VOE14501802, VOE14518516, VOE990582, VOE14511643, VOE14596323, VOE14596315, VOE14562617, VOE14596317, VOE14594770, VOE14596308, VOE14596316, VOE14596313, VOE14596309, VOE14596318, SA8230-25551, VOE14596312, SA8230-25820, VOE14596311, SA14594354, VOE14562616, VOE14550664, VOE14594353, VOE14600784, VOE14596319, VOE14562615, SA8230-33960, VOE14550662, VOE14550661, VOE14550218, SA8230-26191, VOE14529757, VOE14533603, SA8240-03610, VOE14684415, VOE983509, VOE14625240, VOE983530, VOE14600784, SA8240-03280, VOE14601385, 0816201, 0816202, 0960201, 0417304, 0179521, 0218824, 4654850, A811030, 0816205, 0816206, 0816207, 0816208, 0816209, 0816210, 0976202, 0803007, 0803008, 0625509, 0365318, 0816212, 0872302, 0629404, 0803009, 0401202, 0976204, 957366, 984614, 0353318, 0816214, 0365330, 0308623, 0747307, 0816215, 0816216, 0816217, 0976205, 177-2459, 4I-7787, 295-9686, 204-2677, 177-2458, 188-4175, 1772459, 1772458, 1884175
Installed in the model:
- CAT: 349E L VG, 325D L, 345D L, 352F-VG, 325D, 345С L, 345F, 325D LCR, 330D MH, M330D, MT3700 AC, MT4400 AC, MT3300 AC, 340D2 L, 336F, 336E, 336D, 340F, 336D2 L
- HITACHI: ZX330-3, ZX350-3-AMS, ZX350-5G, ZX350H-3, ZX350H-3F, ZX350H-3G, ZX350K-3, ZX350K-5G, ZX350LC-3-HCME, ZX350LCH-5G, ZX350LCK-5G, ZX360W-3, ZX870, ZX870-5B, ZX870-5B-LD, ZX870-5G, ZX870H-3, ZX870H-3F, ZX870H-5B, ZX870H-5B-LD, ZX870H-5G, ZX870LC-5B, ZX870LC-5G, ZX870LCH-5B, ZX870LCH-5G, ZX870LCR-5B, ZX870LCR-5G, ZX870R-3, ZX870R-3F, ZX870R-5B
- HYUNDAI: R290LC-7A, R300LC-7, R305LC-7, R320LC-7, R320LC-7A, R340LC-7(INDIA)
- KATO: HD1430
- KOBELCO: SK330-8
- KOBELCO NEW HOLLAND: E305B
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M5X180 hydraulic motor.
