GM09

Sort By:

Most Viewed

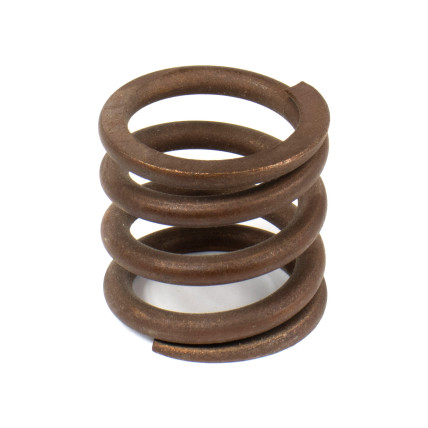

Spring of Rotor Nabtesco GM09 SKS

Model: 16728

In stock

Brand:: SKS Hydraulic

Spare part: Spring of Rotor Nabtesco GM09 SKS Part number: Cross-Number: Use in: Nabtesco GM09 Use i..

6.53 $ excl. VAT 6.53 $

Hydraulic parts other: Hydraulic parts other

Most Viewed

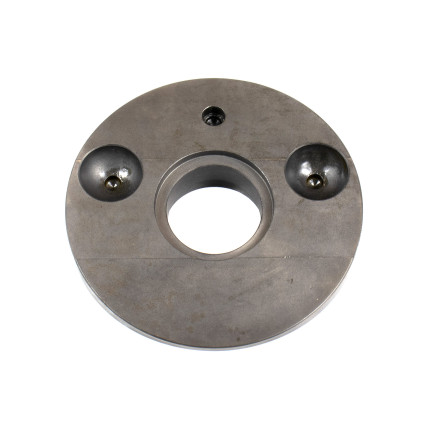

Swash plate (Cam rocker) Nabtesco GM09 SKS

Model: 16734

In stock

Brand:: SKS Hydraulic

Spare part: Swash plate (Cam rocker) Nabtesco GM09 SKS Part number: Cross-Number: Use in: Nabtesco G..

132.29 $ excl. VAT 132.29 $

Main hydraulic units: Main hydraulic units

Most Viewed

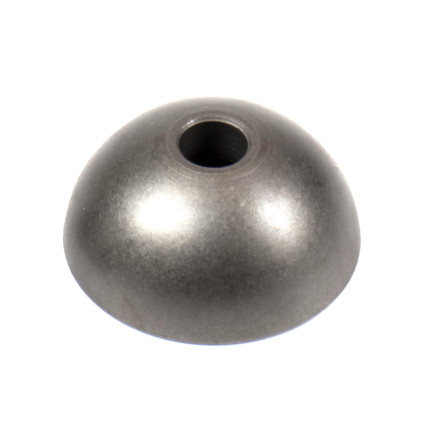

Swash plate Ball Nabtesco GM09 SKS

Model: 16735

In stock

Brand:: SKS Hydraulic

Spare part: Swash plate Ball Nabtesco GM09 SKS Part number: Cross-Number: Use in: Nabtesco GM09 Use ..

17.00 $ excl. VAT 17.00 $

Pins and Retainers for Hydraulic Pumps and Motors: Pins and Retainers for Hydraulic Pumps and Motors

Most Viewed

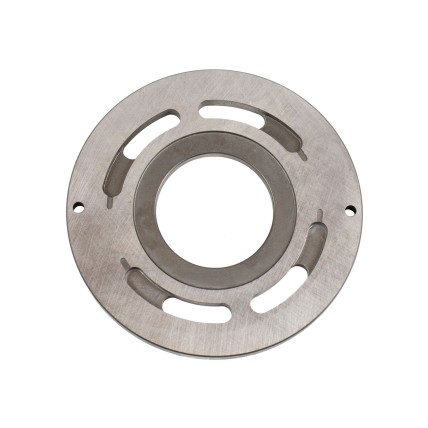

Valve plate Nabtesco 2441U532S109 HANDOK

Model: 11157

In stock

Brand:: HANDOK

Spare part: Valve plate Nabtesco 2441U532S109 HANDOK Part number: 2441U532S109 Cross-Number: TZ860A2..

55.22 $ excl. VAT 55.22 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

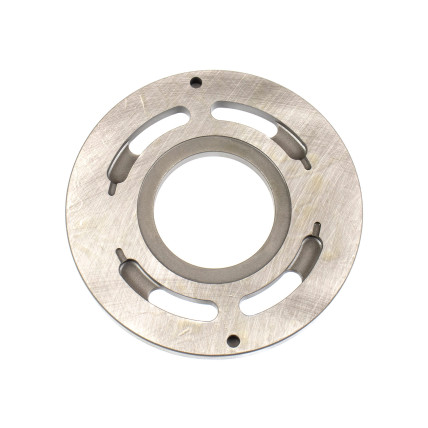

Valve plate Nabtesco GM09 SKS

Model: 16733

In stock

Brand:: SKS Hydraulic

Spare part: Valve plate Nabtesco GM09 SKS Part number: Cross-Number: Use in: Nabtesco GM09 Use in ma..

50.23 $ excl. VAT 50.23 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

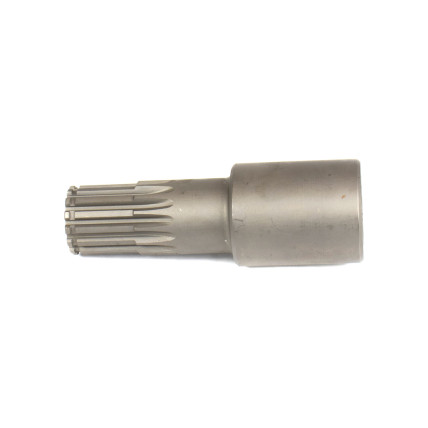

Coupling of drive Shaft Nabtesco GM09 SKS

Model: 16732

Pre-Order

Brand:: SKS Hydraulic

Spare part: Coupling of drive Shaft Nabtesco GM09 SKS Part number: Cross-Number: Use in: Nabtesco GM..

47.97 $ excl. VAT 47.97 $

Couplings: Couplings

Most Viewed

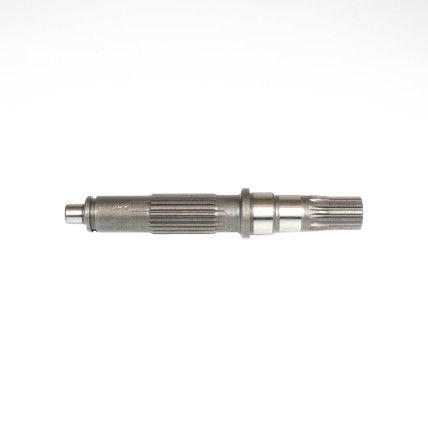

Drive Shaft motor Nabtesco GM09 SKS

Model: 16731

Pre-Order

Brand:: SKS Hydraulic

Spare part: Drive Shaft motor Nabtesco GM09 SKS Part number: Cross-Number: Use in: Nabtesco GM09 Use..

57.87 $ excl. VAT 57.87 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Characteristics of the Nabtesco GM09 hydraulic motor

Nabtesco GM09 motor - a powerful travel motor with high torque (~8.8 kN m), volume 36 cm³/rev, pressure up to 31 MPa, output shaft speed 60 rpm and weight ~81 kg, optimal for medium-tonnage excavators. Provides smooth, powerful and durable track drive

Technical characteristics of the Nabtesco GM09 hydraulic motor:

Output shaft torque: 8,830 N m
Gear ratio: ~75:1 (max. 75.4:1)
Max. working pressure: 31.4 MPa (320 kgf/cm2)
Engine displacement: 36.3 cm³/rev
Maximum motor speed: up to 3,600 rpm
Output shaft speed: 60 rpm
Braking torque: 97 N·m
Weight: ? 81 kg

Hydraulic motor cross number: 201-60-61100, 978B0000-00-NG, TZ971B200000NG, 2441U815F1, YT15V00002F1

Hydraulic motor models: GM09VL-A-23/37-1, GM09VL-D-26/37-1, GM09VL-E-24/38-1

Installed in the equipment model:

Komatsu BR100J, BZ120-1, BZ200-1, BZ210-1, PC60-6, PC60-7, PC70-6, PC70-7, PC75-1, PC75R-2, PC75US-3, PC78US-5.
Kobelco SK60, SK70, SK75, SK95, B71, B76

The company "Aspect Plus" offers a wide range of spare parts for repairing the Nabtesco GM09 hydraulic motor.
