Model: 17629
Spare part: Cylinder block Rotor Toshiba SG04, MFB80 SKS
Part number:
Cross-Number:
Use i..
310.61 $
excl. VAT 310.61 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 5786
Pre-Order
Spare part: Cylinder block Rotor Toshiba SG04 HANDOK Part number: Cross-Number: Use in: Toshiba SG04..
272.97 $
excl. VAT 272.97 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 5558
Pre-Order
Spare part: Friction plate Toshiba SA8230-22910 AFM Part number: SA8230-22910 Cross-Number: Use in: ..
23.10 $
excl. VAT 23.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 4253
Pre-Order

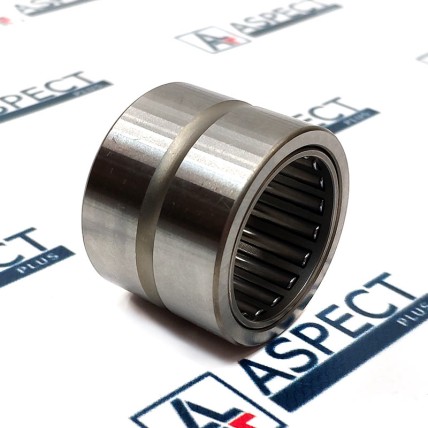

Spare part: Needle Bearing Kawasaki 0924003 SYI
Part number: 0924003
Cross-Number: 0924003, ..
31.50 $
excl. VAT 31.50 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 5783
Pre-Order
Spare part: Retainer Spring Toshiba SA8230-04320 HANDOK Part number: SA8230-04320 Cross-Number: Use ..
9.72 $
excl. VAT 9.72 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 4442
Pre-Order
Spare part: Roller Bearing 4T-32207 NTN Part number: 4T-32207 Cross-Number: 4T-32207, S80-004850, 73..
27.80 $
excl. VAT 27.80 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 3442
Pre-Order

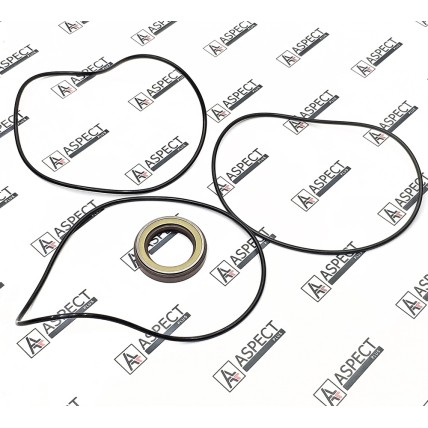

Spare part: Seal kit motor Toshiba VOE14509452 AFM Part number: VOE14509452 Cross-Number: Use in: Pl..
105.00 $
excl. VAT 105.00 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 11916
Pre-Order

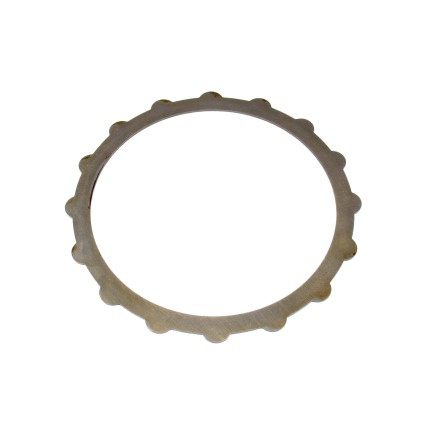

Spare part: Separation Plate Toshiba SA8230-22900 HANDOK Part number: SA8230-22900 Cross-Number: Use..
19.10 $
excl. VAT 19.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 15057
Pre-Order
Spare part: Shaft Seal Hitachi 5I-8769 YBS Part number: 5I-8769 Cross-Number: 03505511, 20/951517 Us..
11.50 $
excl. VAT 11.50 $
Oil seals and belts:
Oil seals and belts
Most Viewed
Model: 3435
Pre-Order
Spare part: Valve plate Toshiba SA8230-03990 HANDOK Part number: SA8230-03990 Cross-Number: Use in: ..
82.33 $
excl. VAT 82.33 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Toshiba SG04 MFB80 MFC80 hydraulic motor
Toshiba SG04 is a powerful hydraulic gear motor designed to drive the slewing mechanism of heavy construction equipment, in particular crawler excavators. This unit combines an axial piston hydraulic motor and an integrated planetary gearbox, which provides the high torque required to rotate the multi-ton machine platform. The motor design is aimed at ensuring reliability and durability in difficult operating conditions.
Technical specifications of the Toshiba SG04 MFB80 MFC80 hydraulic motor:
- Type: Hydraulic motor-reducer for platform rotation
- Design: It is a single unit consisting of:
- Hydraulic motor: Axial piston motor with swash plate
- Gearbox: Built-in multi-stage planetary gearbox, which performs the function of reducing the rotation speed and repeatedly increasing the torque.
- Valve block: Integrated block with safety and brake valves for smooth and safe steering control.
- Displacement: 80 cm3/rev.
- Nominal operating pressure: 250 - 280 bar (25 - 28 MPa).
- Maximum peak pressure: Can reach 350 bar (35 MPa).
- Rotation speed: The speed at the gearbox output shaft (platform rotation speed) is indicated, which for the relevant excavator models is usually 11 - 14 rpm.
- Weight: approximately weight: 130-145 kg.
- Application: The SG04 gear motor is used in the hydraulic steering systems of medium excavators weighing from 12 to 20 tons.
Cross numbers of hydraulic motors: LNM0434, 20/925360, 714/40007, KNC0051, VOE14514894, VOE14541066, VOE14515044, VOE14538545, VOE14504222, KNC0037, MFC80-015, 170-9893, 169-5569, 169-5546, 169-5549, 274-2638, 119-5406, 204-2814, 274-2639
Installed in the equipment model:
- SE130 E110B, E120B, MX-6, LS2600
- JCB, JS110, JS115, JS120, JS130, JS130W, JS145, JS145W
- VOLVO EC160, EC170, EC180
- CAT 311B, 312B, 312C, 312D, 312D2, 312E, 313D, 313D2, 314D, 314E, 315B, 315C, 315D, 316E, 317B
The company "Aspect Plus" offers a wide range of spare parts for repairing the Toshiba SG04 MFB80 MFC80 hydraulic motor.
