Model: 5788
Spare part: Valve plate Toshiba SG08 HANDOK Part number: Cross-Number: Use in: Toshiba SG08 Use in m..
86.22 $
excl. VAT 86.22 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17649
Spare part: Valve plate Toshiba SG08, MFB150, MFB160, MFC160 SKS
Part number:
Cross-Number:
..
91.68 $
excl. VAT 91.68 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 8299
Pre-Order
Spare part: Bearing LTM0129 NTN Part number: LTM0129 Cross-Number: Use in: Please make sure the part..
42.00 $
excl. VAT 42.00 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 3740
Pre-Order

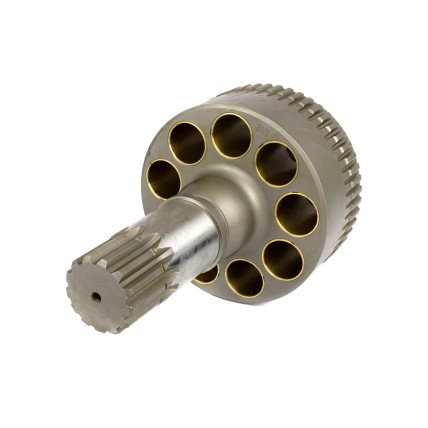

Spare part: Cylinder block Rotor Toshiba 1318-168 HANDOK Part number: 1318-168 Cross-Number: XJDB-00..
307.33 $
excl. VAT 307.33 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 4588
Pre-Order

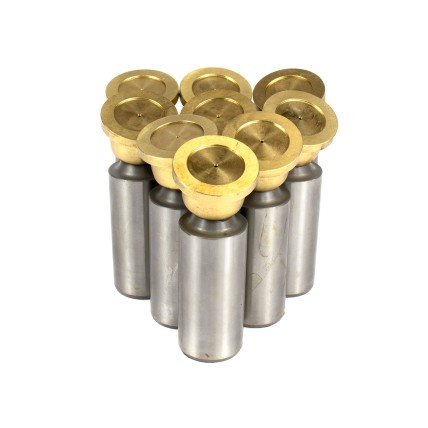

Spare part: Piston shoe Toshiba XJDB-00008 HANDOK Part number: XJDB-00008 Cross-Number: 1321-122 Use..
15.08 $
excl. VAT 15.08 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 4591
Pre-Order

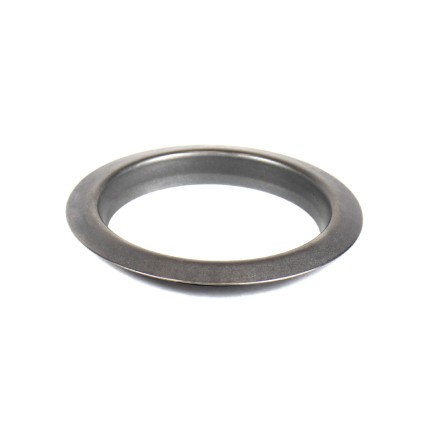

Spare part: Retainer Spring Toshiba XJDB-00005 HANDOK Part number: XJDB-00005 Cross-Number: 1398-149..
15.44 $
excl. VAT 15.44 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 5007
Pre-Order
Spare part: Seal kit motor Toshiba SG08 YBS Part number: Cross-Number: Use in: Toshiba SG08 Use in m..
66.20 $
excl. VAT 66.20 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 4590
Pre-Order

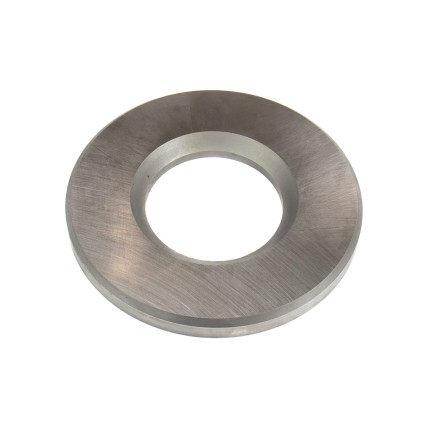

Spare part: Shoe plate Toshiba XJDB-00006 HANDOK Part number: XJDB-00006 Cross-Number: Use in: Pleas..
24.54 $
excl. VAT 24.54 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3392
Pre-Order
Spare part: Valve plate Toshiba LZM0335 HANDOK Part number: LZM0335 Cross-Number: Use in: Please mak..
151.00 $
excl. VAT 151.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 5920
Pre-Order
Spare part: Valve plate Toshiba SG08 4 cushion type HANDOK Part number: Cross-Number: Use in: Toshi..
131.30 $
excl. VAT 131.30 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Characteristics of the Toshiba SG08 MFB150 MFB160 MFC160 hydraulic motor
Toshiba SG08 is a large-sized hydraulic gear motor designed to drive the slewing mechanism of large crawler excavators weighing over 20 tons. This unit is a key component that combines an axial piston motor and a powerful planetary gearbox to create huge torque. It provides smooth, controlled and fast rotation of the heavy excavator work platform even under high loads.
Technical specifications of the Toshiba SG08 MFB150 MFB160 MFC160 hydraulic motor:
- Type: Hydraulic motor-reducer for platform rotation
- Construction: It is a monolithic unit consisting of:
- Hydraulic motor: Axial piston motor with swash plate, designed for high pressure and performance.
- Gearbox: Built-in multi-stage planetary gearbox with high gear ratio for maximum torque increase.
- Valve block: Integrated block with safety and brake valves ensuring safety and smooth operation.
- Working volume:
- MFB150: 150 cm3/rev.
- MFB160, MFC160: 160 cm3/rev.
- Nominal working pressure: 280 - 320 bar (28 - 32 MPa).
- Maximum peak pressure: 380 bar (38 MPa).
- Output speed: 9-13 rpm
- Weight: approximately weight: 190-250 kg.
- Application: The SG08 gear motor is a standard component for popular 20-30 ton excavator models.
Cross numbers of hydraulic motors: 20/925315, JRC0006, KRC10191, LQ15V00015F1, LS15V00008F2, KRC0129, LQ15V00015F2
Installed in the equipment model:
- JSB JS200, JS220, JS235, JS240, JS260
- Caterpillar E200B
- Sumitomo LS2800
- Kato HD800V2
- Samsung SE210LC
- Kobelco SK250-8, SK230-6E
- HIDROMEK HMK220
- DOOSAN 340
- CASE CX210
- Hyundai R200W-7, R210LC-7, R210NLC-7, R250LC-7, R450LC-7
The company "Aspect Plus" offers a wide range of spare parts for repairing the Toshiba SG08 MFB150 MFB160 MFC160 hydraulic motor.
