Model: 8475
Spare part: Seal kit motor Kawasaki 0365328 YBS Part number: 0365328 Cross-Number: XKAH-01060, XKAH-..
53.30 $
excl. VAT 53.30 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 4021
Spare part: Separation Plate Kawasaki M2X150 AFM
Part number:
Cross-Number:
Use in: Kawas..
21.00 $
excl. VAT 21.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10889
Spare part: Separation plate Kawasaki M2X150 SKS Part number: Cross-Number: Use in: Kawasaki M2X150 ..
20.54 $
excl. VAT 20.54 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 9702
Spare part: Shoe plate Kawasaki 0365314 SKS Part number: 0365314 Cross-Number: XKAH-00151 Use in: Pl..
39.78 $
excl. VAT 39.78 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3853
Spare part: Shoe plate Kawasaki XKAH-00151 HANDOK Part number: XKAH-00151 Cross-Number: 0365314 Use ..
29.32 $
excl. VAT 29.32 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 6495
Spare part: Valve plate Motor Kawasaki M2X150 HANDOK Part number: Cross-Number: Use in: Kawasaki M2X..
92.18 $
excl. VAT 92.18 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17928
Spare part: Valve plate Motor Kawasaki M2X150, M2X170 SKS
Part number:
Cross-Number:
Use ..
102.00 $
excl. VAT 102.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3846
Spare part: Valve plate Motor Kawasaki XKAH-00150 HANDOK Part number: XKAH-00150 Cross-Number: 03653..
68.65 $
excl. VAT 68.65 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 10885

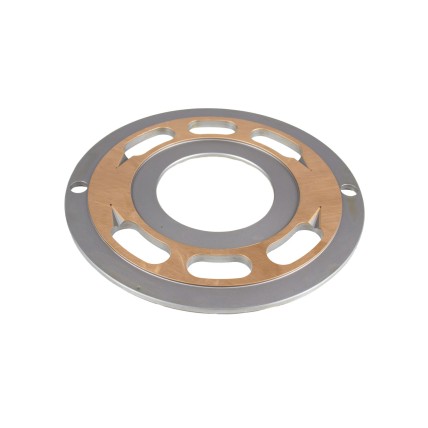

Spare part: Valve plate Motor Kawasaki XKAH-00150 SKS Part number: XKAH-00150 Cross-Number: 0365315 ..
81.94 $
excl. VAT 81.94 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 12952

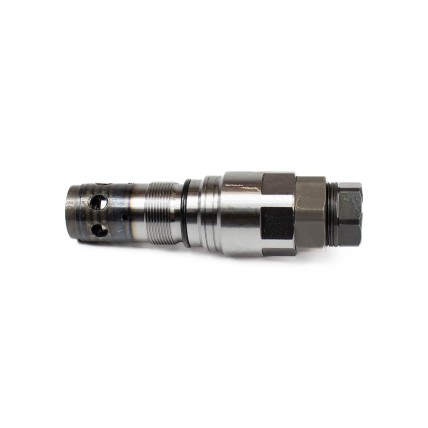

Spare part: Valve Relief Kawasaki V9106040934 SKS Part number: V9106040934 Cross-Number: 225419 Use ..
144.43 $
excl. VAT 144.43 $
Valves and solenoids of hydraulic pumps:
Valves and solenoids of hydraulic pumps
Most Viewed
Model: 3851
Pre-Order

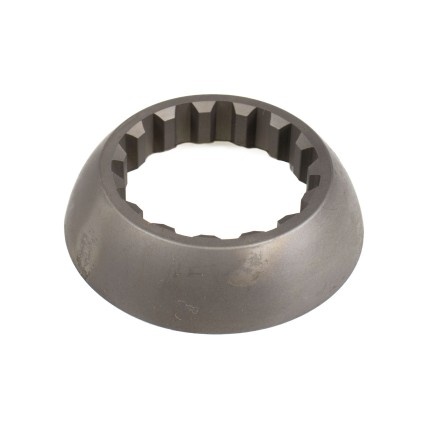

Spare part: Ball guide Kawasaki XKAH-00159 HANDOK Part number: XKAH-00159 Cross-Number: 0365308 Use ..
26.31 $
excl. VAT 26.31 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3852
Pre-Order

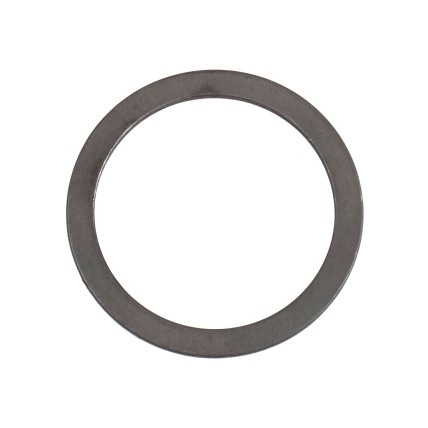

Spare part: Ball guide Washer Kawasaki XKAH-00156 HANDOK Part number: XKAH-00156 Cross-Number: 03653..
5.11 $
excl. VAT 5.11 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 3848
Pre-Order

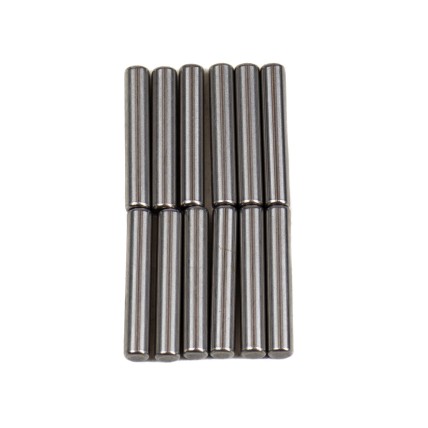

Spare part: Cylinder block press Pin Kawasaki XKAH-00157 HANDOK Part number: XKAH-00157 Cross-Number..
4.10 $
excl. VAT 4.10 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 15088
Pre-Order

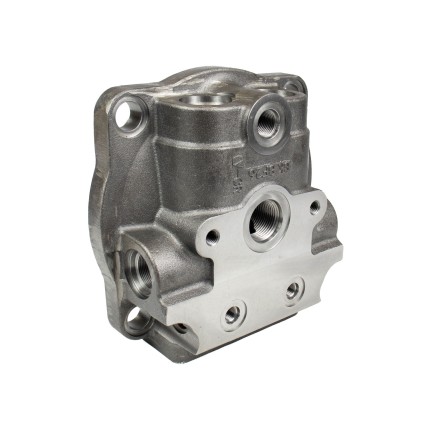

Spare part: Hydraulic motor Cover XKAY-01546 AFM Part number: XKAY-01546 Cross-Number: Use in: Pleas..
892.00 $
excl. VAT 892.00 $
Hydraulic housing parts:
Hydraulic housing parts
Most Viewed
Model: 3849
Pre-Order
Spare part: Piston shoe Kawasaki XKAH-00154 HANDOK Part number: XKAH-00154 Cross-Number: 0365301, XK..
20.95 $
excl. VAT 20.95 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kawasaki M2X150 hydraulic motor specifications
The Kawasaki M2X150 hydraulic motor is a fixed-displacement axial piston motor with a swash plate, specifically designed for the slewing mechanisms of medium and large excavators.
Technical specifications of the Kawasaki M2X150 hydraulic motor:
- Type: Fixed displacement axial piston motor with swash plate
- Displacement: 150 cm3/rev
- Maximum working pressure: 29 MPa (290 bar)
- Maximum torque: approximately 13,000 N m
- Maximum rotation speed: approximately 90 rpm
- Maximum flow rate: up to 150 l/min
- Brake release pressure: 2–7 MPa
Design features of the Kawasaki M2X150 hydraulic motor:
- Compactness: The rotating group, brake mechanism and valves are integrated into a single unit, which simplifies installation and maintenance.
- High efficiency: Optimized design ensures stable operation under high loads.
- Reliability: Built-in valves provide overload protection and stable system operation.
Hydraulic motor cross number: 4244113, 4334276, 4224991, 4246413, 4392604, 4486433, 4352851, 4312837, 4429583, 31N8-12010, 31EL-12060, 31N7-10160, 31Q7-10150, 31Q7-10150, 31Q7-10130, 31N8-12010, 31N8-12020, 31Q8-10150, 31Q8-10151, 31Q8-10130, 31NB-11160, 31NB-11140
Installed in the model:
- Hitachi CX1000, CX1100, CX1800, CX2000, CX350DR, CX500, CX550, CX700, EX200, EX220, EX400, EX400-3, EX400-5, EX450-3
- Hyundai R160LC-7, R160LC-7A, R170W-7, R170W-7A, R180LC-7, R180LC-7A, R250LC-7, R250LC-7A, R250LC-9, R260LC-9A, R260LC-9S, R290LC-7, R290LC-7A, R290LC-7A, R290LC7H, R290LC-9, R290LC-9MH, R300LC-7, R300LC-7, R300LC-9A, R305LC-7, R320LC-7, R320LC-7A, R450LC-7, R450LC-7A, R500LC-7, R500LC-7A
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M2X150 hydraulic motor.
