Model: 10885
Spare part: Valve plate Motor Kawasaki XKAH-00150 SKS Part number: XKAH-00150 Cross-Number: 0365315 ..
81.94 $
excl. VAT 81.94 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 12952
Spare part: Valve Relief Kawasaki V9106040934 SKS Part number: V9106040934 Cross-Number: 225419 Use ..
144.43 $
excl. VAT 144.43 $
Valves and solenoids of hydraulic pumps:
Valves and solenoids of hydraulic pumps
Most Viewed
Model: 3851
Pre-Order
Spare part: Ball guide Kawasaki XKAH-00159 HANDOK Part number: XKAH-00159 Cross-Number: 0365308 Use ..
26.31 $
excl. VAT 26.31 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3852
Pre-Order
Spare part: Ball guide Washer Kawasaki XKAH-00156 HANDOK Part number: XKAH-00156 Cross-Number: 03653..
5.11 $
excl. VAT 5.11 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 3849
Pre-Order
Spare part: Piston shoe Kawasaki XKAH-00154 HANDOK Part number: XKAH-00154 Cross-Number: 0365301, XK..
20.95 $
excl. VAT 20.95 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3850
Pre-Order

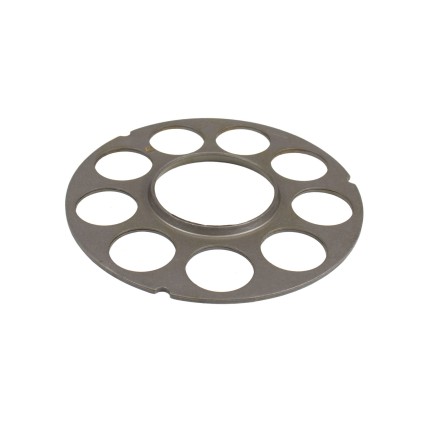

Spare part: Retainer Plate Kawasaki XKAH-00152 HANDOK Part number: XKAH-00152 Cross-Number: 0365313 ..
25.88 $
excl. VAT 25.88 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3810
Pre-Order
Spare part: Roller Bearing 0816212 Kawasaki K3V140, K3V140, K3V180, K3VG180, K5V160, K5V180, K5V200D..
84.00 $
excl. VAT 84.00 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 3964
Pre-Order

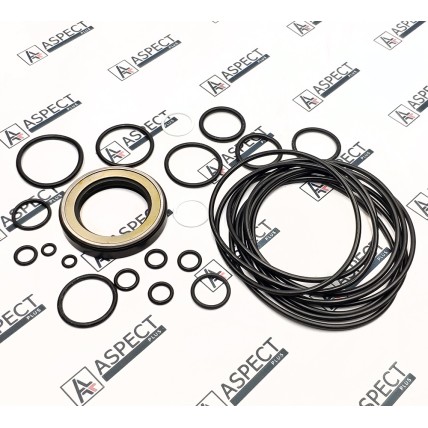

Spare part: Seal kit motor Kawasaki 0365328 NOK AFM Part number: 0365328 Cross-Number: XKAH-01060, X..
84.00 $
excl. VAT 84.00 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 11462
Pre-Order

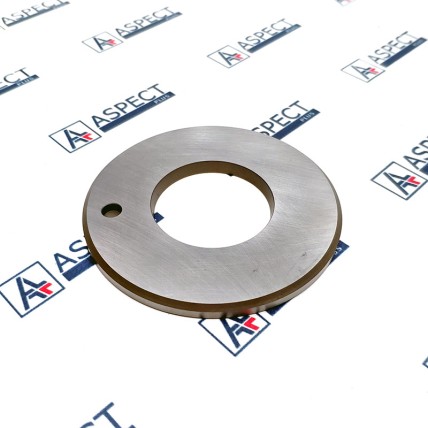

Spare part: Shoe plate Vickers 9T-3020 AFM Part number: 9T-3020 Cross-Number: Use in: Please make su..
90.00 $
excl. VAT 90.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kawasaki M2X170 hydraulic motor specifications
The Kawasaki M2X170 hydraulic motor is a fixed displacement axial piston motor with a swash plate, specifically designed for use in the slewing mechanisms of medium and large excavators. This model is part of the M2X series, which also includes the M2X63, M2X96, M2X120, M2X146, M2X150, M2X210 models.
Technical specifications of the Kawasaki M2X170 hydraulic motor:
- Type: Fixed displacement axial piston motor with swash plate
- Displacement: 170 cm3/rev
- Maximum working pressure: 29 MPa (290 bar)
- Maximum torque: approximately 14,000 N m
- Maximum rotation speed: approximately 90 rpm
- Maximum flow rate: up to 150 l/min
- Brake release pressure: 2–7 MPa
Design features of the Kawasaki M2X170 hydraulic motor:
- Compactness: The rotating group, brake mechanism and valves are integrated into a single unit, which simplifies installation and maintenance.
- High efficiency: Optimized design ensures stable operation under high loads.
- Reliability: Built-in valves provide overload protection and stable system operation.
Hydraulic motor cross number:
Installed in the model:
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki M2X170 hydraulic motor.
