Model: 11993

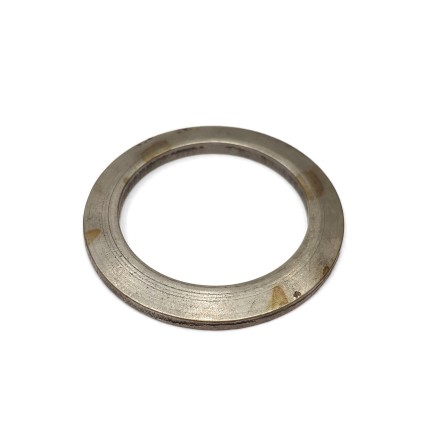

Spare part: Washer Kayaba PSVL-54, PSVD2-27 H=3.5 mm SKS Part number: Cross-Number: Use in: Kayaba P..
3.65 $
excl. VAT 3.65 $
Other parts:
Other parts
Most Viewed
Model: 11858
Pre-Order
Spare part: Ball guide Kayaba PSVD2-27, PSVL-54 HANDOK Part number: Cross-Number: Use in: Kayaba PSV..
36.00 $
excl. VAT 36.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 11859
Pre-Order
Spare part: Cylinder block Rotor Kayaba PSVL-54 HANDOK Part number: Cross-Number: Use in: Kayaba PSV..
290.00 $
excl. VAT 290.00 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 11862
Pre-Order

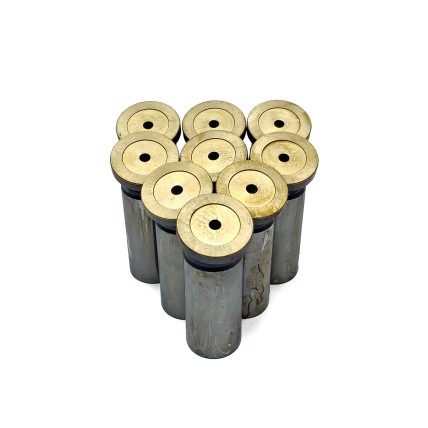

Spare part: Piston shoe Kayaba PSVL-54 HANDOK Part number: Cross-Number: Use in: Kayaba PSVL-54 Use ..
38.10 $
excl. VAT 38.10 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 11863
Pre-Order

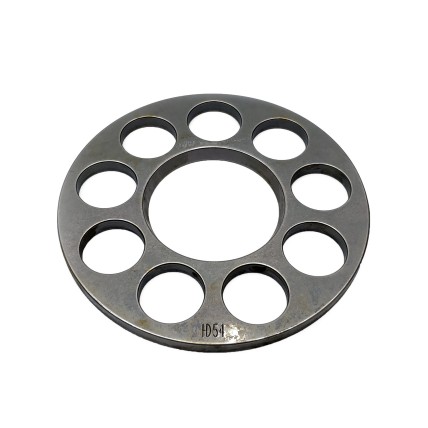

Spare part: Retainer Plate Kayaba PSVD2-27, PSVL-54 HANDOK Part number: Cross-Number: Use in: Kayaba..
48.00 $
excl. VAT 48.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 11864
Pre-Order
Spare part: Sliding Bearing Kayaba PSVL-54 HANDOK Part number: Cross-Number: Use in: Kayaba PSVL-54 ..
59.72 $
excl. VAT 59.72 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 11865
Pre-Order
Spare part: Swash plate (Cam rocker) Kayaba PSVL-54 HANDOK Part number: Cross-Number: Use in: Kayaba..
196.97 $
excl. VAT 196.97 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 11866
Pre-Order
Spare part: Valve plate Kayaba RD20169040 HANDOK Part number: RD20169040 Cross-Number: RD20169030 Us..
117.30 $
excl. VAT 117.30 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kayaba PSVL-54 hydraulic pump characteristics
The Kayaba PSVL-54 hydraulic pump is a variable displacement axial piston pump designed for hydraulic systems of mini excavators and compact construction equipment. Its compact design and high efficiency ensure reliable operation under heavy-duty conditions.
Technical characteristics of the Kayaba PSVL-54 hydraulic pump:
- Type: axial piston pump with variable displacement
- Design: compact, with inclined washer
- Displacement: approx. 54 cm3/rev
- Maximum pressure: up to 245 bar
- Maximum rotation speed: up to 2400 rpm
- Total weight: about 26 kg
- Dimensions: approximately 54x43x30 cm
The Kayaba PSVL-54 pump is widely used in the hydraulic systems of mini excavators such as Kubota KX151, KX155, KX161, as well as other compact construction equipment. Its reliability and efficiency make it a popular choice for machines operating in confined spaces and requiring high maneuverability.
Kayaba PSVL-54 hydraulic pump has the following advantages:
- High performance in a compact size
- Reliable operation under high loads
- Energy efficiency thanks to variable displacement
- Long service life and easy maintenance
Hydraulic pump cross number: B0610-54004, B0610-54010, B0610-54011, B0610-54012, 2666827, 266-6827, 2794711, 2794710, 279-4711, 279-4710, RD20161110, RD20169740, RD20169030, RD20169040, RD20169050, RD20169060, RD20169070, RD20169750, RD20169080, RD20169090, RD20169110, RD20169760, RD20169130, RD20169140, RD20169150, RD20169160, RD20169170, RD20169180, RD20169190, RD20169210, RD20169220, 6849371850, 6865172380, RD20169230, RD20169240, RD20169250, RD20169260, RD20169270, RD20169280, RD20169290, RD20169310, 6849371450, RD20169320, RD20169330, RD20169340, RD20169350, RD20169360, RD20169370, RC50171360, RD20169380, RD20169390, RD20169410, RD20169420, RD20169430, 6865172490, RD20169440, RD20169450, RD20169460, RD20169470, RD20169480, RD20169490, RD20169220, 6884170750, RD20169540, RD20169550, 6831172390, RD20169560, RD20169570, RD20169572, 6867169410, RD20169780, RD20169590, RD20169610, RD20169620, RD20169630, 6884170710, RD20169640, RD20169650, RD20169660, RD20169670, RD20169680, RD20169690, 113361230, RD20169680
Installed in the model:
- Caterpillar E305.5D, E305C, 305.5E, 303C Cr, 303.5C, 305D Cr
- Kubota U-40, U-40-3, U-40-5, K-040, K-040-3, KX161, KX161-2, KX160-3, KX161-3
The company "Aspect Plus" offers a wide range of spare parts for the repair of the Kayaba PSVL-54 hydraulic pump
