Model: 17854
Spare part: Driven Shaft Kawasaki 334/E2925 SKS
Part number: 334/E2925
Cross-Number: VOE1451..
107.80 $
excl. VAT 107.80 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 2766

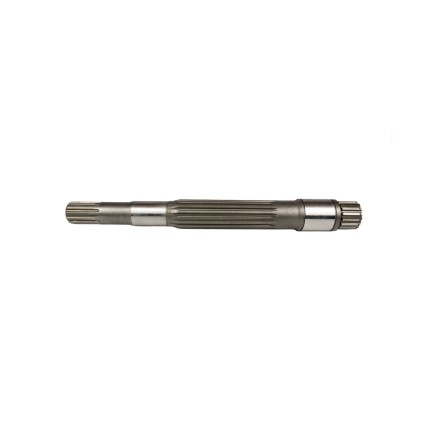

Spare part: Driven Shaft Kawasaki K5V200DPH L=450 mm, 16T/10T HANDOK Part number: Cross-Number: Use ..
173.76 $
excl. VAT 173.76 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 3533

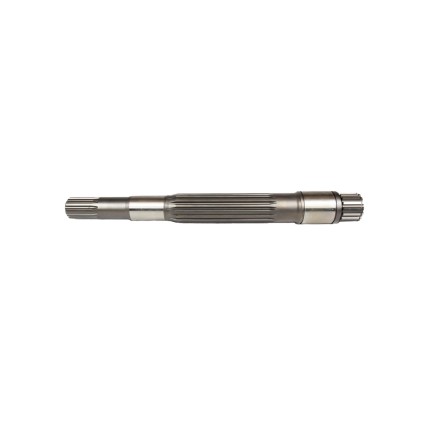

Spare part: Driven Shaft Kawasaki K5V200DPH L=450 mm, 16T/13T HANDOK Part number: Cross-Number: Use ..
181.69 $
excl. VAT 181.69 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 2767
Spare part: Driven Shaft Kawasaki K5V200DPH L=472 mm, 16T/13T HANDOK Part number: Cross-Number: Use ..
178.76 $
excl. VAT 178.76 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 2775
Spare part: Driven Shaft Kawasaki K5V200DTH 13T/10T HANDOK Part number: Cross-Number: Use in: Kawasa..
159.48 $
excl. VAT 159.48 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 2774
Spare part: Driven Shaft Kawasaki K5V200DTH 13T/13T HANDOK Part number: Cross-Number: Use in: Kawasa..
132.80 $
excl. VAT 132.80 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 17634
Spare part: EPR Valve Kawasaki 4654325 SKS
Part number: 4654325
Cross-Number: Yb35v00006f1, ..
142.98 $
excl. VAT 142.98 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 17641
Spare part: EPR Valve Kawasaki H349010093 SKS
Part number: H349010093
Cross-Number: KDRDE5KR..
172.33 $
excl. VAT 172.33 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 17375
Spare part: EPR Valve Kawasaki SKX5P-17-208 SKS
Part number: SKX5P-17-208
Cross-Number: CXRD..
159.08 $
excl. VAT 159.08 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 3411
Spare part: EPR Valve with manifold Kawasaki 20/950631 HANDOK Part number: 20/950631 Cross-Number: X..
318.40 $
excl. VAT 318.40 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 12877

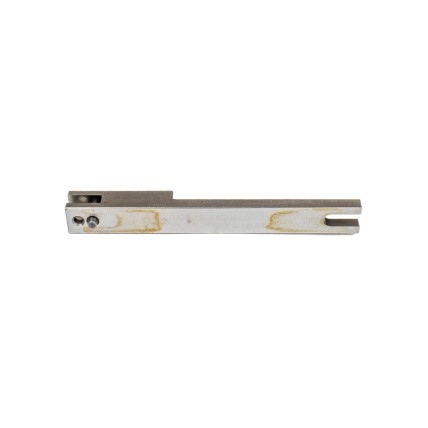

Spare part: Feed back lever Kawasaki K5V200DPH, K5V200DTH L=121.0 mm HANDOK Part number: Cross-Numbe..
41.15 $
excl. VAT 41.15 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 12878

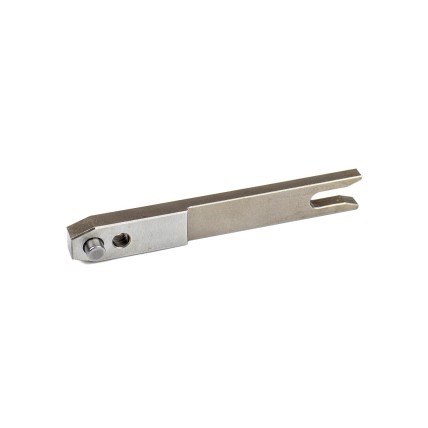

Spare part: Feed back lever Kawasaki K5V200DPH, K5V200DTH L=99.0 mm HANDOK Part number: Cross-Number..
55.53 $
excl. VAT 55.53 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 10564

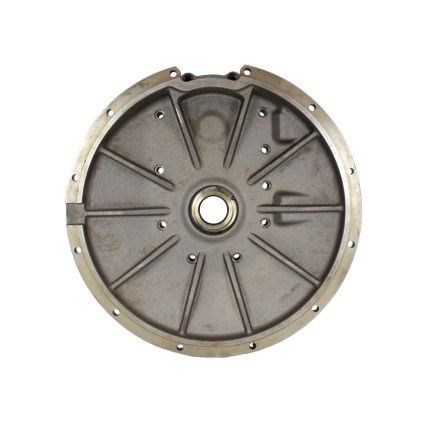

Spare part: Gear box Casing Kawasaki 20/950831 HANDOK Part number: 20/950831 Cross-Number: 332/C8975..
528.00 $
excl. VAT 528.00 $
Hydraulic housing parts:
Hydraulic housing parts
Most Viewed
Model: 6654
Spare part: Gear Hub Kawasaki 331/19919 SPINPARTS Part number: 331/19919 Cross-Number: 11E9-15081 Us..
101.68 $
excl. VAT 101.68 $
Couplings:
Couplings
Most Viewed
Model: 17856
Spare part: Gear pump Kawasaki 20/950822 SKS
Part number: 20/950822
Cross-Number: 335/F2164,..
216.00 $
excl. VAT 216.00 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Kawasaki K5V200 hydraulic pump specifications
The Kawasaki K5V200 hydraulic pump is a variable displacient axial piston pump with a swash plate designed for open hydraulic systis in heavy mobile equipment, including excavators, cranes, drilling rigs and other equipment requiring high performance and reliability.
Technical specifications of the Kawasaki K5V200 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 200 cm3/rev
- Nominal pressure: 34.3 MPa (343 bar)
- Maximum pressure: 39.2 MPa (392 bar)
- Maximum rotation speed: 2200 rpm
- Weight: approximately 257 kg
- Input power: up to 150 kW
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 10–1000 cSt
- Applications: excavators, loaders, cranes, tractors, combines, injection machines, fans, garbage trucks
Design features of the Kawasaki K5V200 hydraulic pump:
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump cross number: 20/925278, 20/925278R, 20/925334, 20/925334R, 20/925789, 20/925789R, 20/925652, 20/925652R, 20/951041, 20/951041R, 332/K3167, 332/K5127, 332/K8167, 333/J2146, JSJ0050, JSJ0050R, 31NB-10010, 31NB-10020, 31NB-10022, 31QB-10020, 31QB-10030, 31KB-10010, 31QB-10011 VOE14526609, VOE14569675, VOE14612484, VOE14618624, VOE14595548, 295-9674, 295-9655, 315-4393, 322-8733, 497-8499, 283-6116, 434-8188, 477-8794, 497-8499, 266-7954, 274-2490, 246-9867, 247-8841, 242-6920, 247-8985, 247-8729, 242-6919, 8T-4131, 6V-8200, 7I-8166, 109-1296, 7I-8172, 242-6914, 247-8712, 7I-8152, 109-1294, 7I-8171, 242-6915, 095-0965, 095-0966, 242-6918, 200-3292, 264-8266, 234-4539, 249-1306, 242-6916, 110-5525, 153-4906, 295-9656, 7I-8154, 242-6912, 242-6913, 289-8172, 7I-8084, 311-9548, 247-8725, 095-0882, 247-8786, 206-9290, 242-6917, 095-0944, 249-6657, 289-8174, 289-8175, 6V-5204, 247-8718, 289-8173, 8T-0343, 8T-4241, 247-8787, 247-8719, 259-0835, 295-9658, 259-0832, 247-8715, 295-9659, 295-9657, 249-1307, 247-8713, 8T-9080, 225-4516, 249-6670, 247-8720, 247-8717, 095-0929, 247-8726, 259-0831, 206-9291, 225-4518, 295-9660
Installed in the model:
- CAT :330D, 330DL, 330DN, 336D, 336DL, 345C M330D
- HYUNDAI : R4500LC-7, R450LC-7, R500LC-7, R4700LC-7, R450LC-9, R480LCH, R480LC-9S, R520LCF
- JCB : JS330, JS330, JS330 AUTO, JS330, JS330LCT4, JS330LRT4, JS330LXT4, JS330NLCT4, JS330NXDT4, JS330XD, JS330XD AUTO, JS360, JS360LR, JS360XD, JS360LCT4, JS360LRT4, JS360LXDT4, JS360NLCT4, JS360NXDT4, JS370, JS460, JS500
- VOLVO : EC460B, EC460C, EC470CR, EC480, R520LC-9
- KCP KML1714
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V200 hydraulic pump.
