Model: 2761

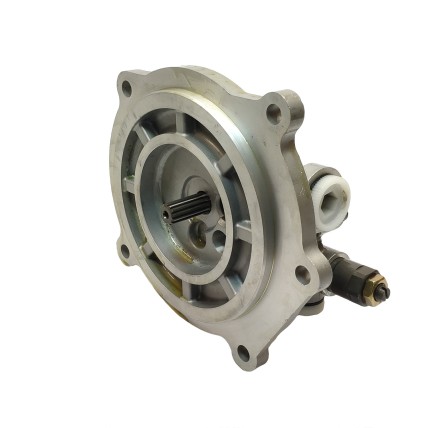

Spare part: Gear pump Kawasaki LS10V00018F1 HANDOK Part number: LS10V00018F1 Cross-Number: 335/F2164..
228.30 $
excl. VAT 228.30 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 17372
Spare part: Gear pump Kawasaki XJBN-00655 SKS
Part number: XJBN-00655
Cross-Number: 2902440-..
195.71 $
excl. VAT 195.71 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 11035
Spare part: Head cover Gasket Kawasaki 0820439 SKS Part number: 0820439 Cross-Number: 20/950881 Use ..
44.15 $
excl. VAT 44.15 $
Gaskets:
Gaskets
Most Viewed
Model: 9161
Spare part: Hydraulic Pump assembly Kawasaki 4633472 HANDOK Part number: 4633472 Cross-Number: Use i..
8,831.69 $
excl. VAT 8,831.69 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 10864
Spare part: Hydraulic Pump Cover (front) Kawasaki K3V140, K3V180, K5V160, K5V180, K5V200DT, K5V200DT..
68.52 $
excl. VAT 68.52 $
Hydraulic housing parts:
Hydraulic housing parts
Most Viewed
Model: 17852
Spare part: Hydraulic Pump Cover (rear) Kawasaki 14519957 SKS
Part number: 14519957
Cross-Nu..
52.30 $
excl. VAT 52.30 $
Hydraulic housing parts:
Hydraulic housing parts
Most Viewed
Model: 9160
Spare part: Hydraulic Pump Cover (rear) Kawasaki 20/950835 HANDOK Part number: 20/950835 Cross-Numbe..
91.30 $
excl. VAT 91.30 $
Hydraulic housing parts:
Hydraulic housing parts
Most Viewed
Model: 6379
Spare part: Idle Gear Left Kawasaki 820419 HANDOK Part number: 820419 Cross-Number: 20/950829 Use in..
340.74 $
excl. VAT 340.74 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 6380
Spare part: Idle Gear Right Kawasaki 820418 HANDOK Part number: 820418 Cross-Number: 20/950830 Use i..
340.74 $
excl. VAT 340.74 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 5049

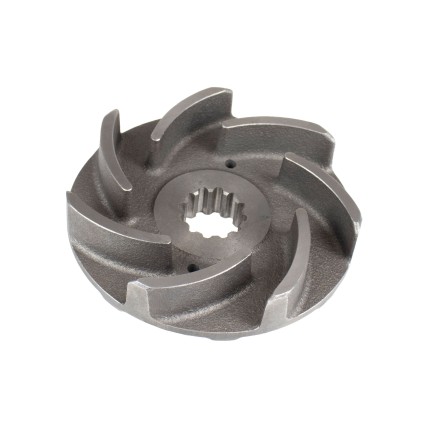

Spare part: Impeller booster Kawasaki 0978505 HANDOK Part number: 0978505 Cross-Number: 20/950836, 3..
118.96 $
excl. VAT 118.96 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 11840

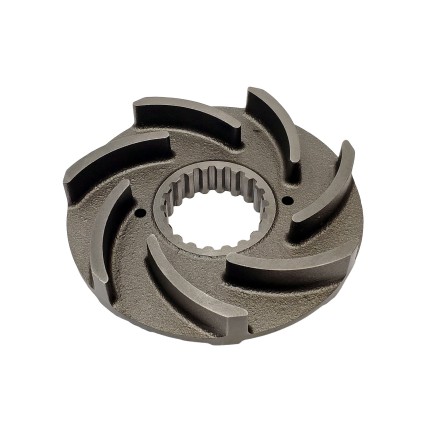

Spare part: Impeller booster Kawasaki SA8230-09090 HANDOK Part number: SA8230-09090 Cross-Number: 04..
168.14 $
excl. VAT 168.14 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 10788
Spare part: Needle Bearing Kawasaki 0978503 SKS Part number: 0978503 Cross-Number: XJBN-00673, 20/95..
52.52 $
excl. VAT 52.52 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 13766
Spare part: Needle Bearing Kawasaki AJ503806 SKS Part number: AJ503806 Cross-Number: Use in: Please ..
46.69 $
excl. VAT 46.69 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 8496
Spare part: Oil Seal Kawasaki K3V140, K3V180, K5V140, K5V160, K5V200 YBS Part number: Cross-Number: ..
15.60 $
excl. VAT 15.60 $
Oil seals and belts:
Oil seals and belts
Most Viewed
Model: 10867

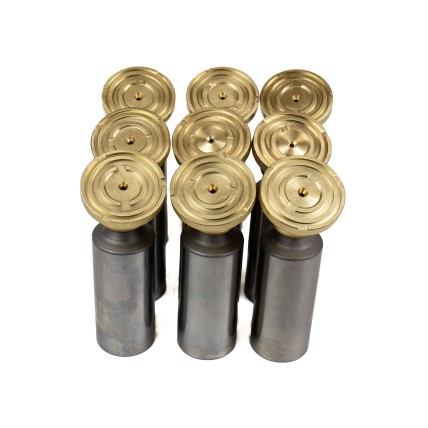

Spare part: Piston shoe Kawasaki 0820401 SKS Part number: 0820401 Cross-Number: XJBN-00681, XJBN-006..
22.33 $
excl. VAT 22.33 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Kawasaki K5V200 hydraulic pump specifications
The Kawasaki K5V200 hydraulic pump is a variable displacient axial piston pump with a swash plate designed for open hydraulic systis in heavy mobile equipment, including excavators, cranes, drilling rigs and other equipment requiring high performance and reliability.
Technical specifications of the Kawasaki K5V200 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 200 cm3/rev
- Nominal pressure: 34.3 MPa (343 bar)
- Maximum pressure: 39.2 MPa (392 bar)
- Maximum rotation speed: 2200 rpm
- Weight: approximately 257 kg
- Input power: up to 150 kW
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 10–1000 cSt
- Applications: excavators, loaders, cranes, tractors, combines, injection machines, fans, garbage trucks
Design features of the Kawasaki K5V200 hydraulic pump:
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump cross number: 20/925278, 20/925278R, 20/925334, 20/925334R, 20/925789, 20/925789R, 20/925652, 20/925652R, 20/951041, 20/951041R, 332/K3167, 332/K5127, 332/K8167, 333/J2146, JSJ0050, JSJ0050R, 31NB-10010, 31NB-10020, 31NB-10022, 31QB-10020, 31QB-10030, 31KB-10010, 31QB-10011 VOE14526609, VOE14569675, VOE14612484, VOE14618624, VOE14595548, 295-9674, 295-9655, 315-4393, 322-8733, 497-8499, 283-6116, 434-8188, 477-8794, 497-8499, 266-7954, 274-2490, 246-9867, 247-8841, 242-6920, 247-8985, 247-8729, 242-6919, 8T-4131, 6V-8200, 7I-8166, 109-1296, 7I-8172, 242-6914, 247-8712, 7I-8152, 109-1294, 7I-8171, 242-6915, 095-0965, 095-0966, 242-6918, 200-3292, 264-8266, 234-4539, 249-1306, 242-6916, 110-5525, 153-4906, 295-9656, 7I-8154, 242-6912, 242-6913, 289-8172, 7I-8084, 311-9548, 247-8725, 095-0882, 247-8786, 206-9290, 242-6917, 095-0944, 249-6657, 289-8174, 289-8175, 6V-5204, 247-8718, 289-8173, 8T-0343, 8T-4241, 247-8787, 247-8719, 259-0835, 295-9658, 259-0832, 247-8715, 295-9659, 295-9657, 249-1307, 247-8713, 8T-9080, 225-4516, 249-6670, 247-8720, 247-8717, 095-0929, 247-8726, 259-0831, 206-9291, 225-4518, 295-9660
Installed in the model:
- CAT :330D, 330DL, 330DN, 336D, 336DL, 345C M330D
- HYUNDAI : R4500LC-7, R450LC-7, R500LC-7, R4700LC-7, R450LC-9, R480LCH, R480LC-9S, R520LCF
- JCB : JS330, JS330, JS330 AUTO, JS330, JS330LCT4, JS330LRT4, JS330LXT4, JS330NLCT4, JS330NXDT4, JS330XD, JS330XD AUTO, JS360, JS360LR, JS360XD, JS360LCT4, JS360LRT4, JS360LXDT4, JS360NLCT4, JS360NXDT4, JS370, JS460, JS500
- VOLVO : EC460B, EC460C, EC470CR, EC480, R520LC-9
- KCP KML1714
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V200 hydraulic pump.
