K5V200

Sort By:

Most Viewed

Ball guide Kawasaki 0820416 FLUTEK

Model: 6297

Pre-Order

Brand:: FLUTEK

Spare part: Ball guide Kawasaki 0820416 FLUTEK Part number: 0820416 Cross-Number: XJBN-00564, VOE145..

35.70 $ excl. VAT 35.70 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Ball guide Kawasaki 0820416 Spinparts

Model: 4222

Pre-Order

Brand:: SPINPARTS

Spare part: Ball guide Kawasaki 0820416 Spinparts Part number: 0820416 Cross-Number: XJBN-00..

20.00 $ excl. VAT 20.00 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Ball guide Kawasaki XJBN-00564 HANDOK

Model: 2927

Pre-Order

Brand:: HANDOK

Spare part: Ball guide Kawasaki XJBN-00564 HANDOK Part number: XJBN-00564 Cross-Number: ..

27.68 $ excl. VAT 27.68 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Cylinder block and Valve plate Left Kawasaki 0451002 HANDOK

Model: 2839

Pre-Order

Brand:: HANDOK

Spare part: Cylinder block and Valve plate Left Kawasaki 0451002 HANDOK Part number: 0451002 Cross-N..

498.80 $ excl. VAT 498.80 $

Main hydraulic units: Main hydraulic units

Most Viewed

EPR Valve Kawasaki 20/40C13-203A HANDOK

Model: 5277

Pre-Order

Brand:: HANDOK

Spare part: EPR Valve Kawasaki 20/40C13-203A HANDOK Part number: 20/40C13-203A Cross-Number:..

258.97 $ excl. VAT 258.97 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

EPR Valve Kawasaki 20/950631 HANDOK

Model: 9149

Pre-Order

Brand:: HANDOK

Spare part: EPR Valve Kawasaki 20/950631 HANDOK Part number: 20/950631 Cross-Number: XJBN-00014, XJB..

289.20 $ excl. VAT 289.20 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

EPR Valve Kawasaki 4654325 AFM

Model: 5947

Pre-Order

Brand:: AFTERMARKET

Spare part: EPR Valve Kawasaki 4654325 AFM Part number: 4654325 Cross-Number: Use in: Please make su..

157.50 $ excl. VAT 157.50 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

EPR Valve Kawasaki 4654325 HANDOK

Model: 9158

Pre-Order

Brand:: HANDOK

Spare part: EPR Valve Kawasaki 4654325 HANDOK Part number: 4654325 Cross-Number: Yb35v00006f1, Yn35v..

169.31 $ excl. VAT 169.31 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

EPR Valve Kawasaki XJBN-00382 HANDOK

Model: 3343

Pre-Order

Brand:: HANDOK

Spare part: EPR Valve Kawasaki XJBN-00382 HANDOK Part number: XJBN-00382 Cross-Number: XJBN-..

171.17 $ excl. VAT 171.17 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

Gear pump Kawasaki 207-8235 HANDOK

Model: 9157

Pre-Order

Brand:: HANDOK

Spare part: Gear pump Kawasaki 207-8235 HANDOK Part number: 207-8235 Cross-Number: Use in: Please ma..

315.39 $ excl. VAT 315.39 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

Gear pump Kawasaki XJBN-00923 HANDOK

Model: 3025

Pre-Order

Brand:: HANDOK

Spare part: Gear pump Kawasaki XJBN-00923 HANDOK Part number: XJBN-00923 Cross-Number: 20/950822, 33..

214.53 $ excl. VAT 214.53 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

Head cover Gasket Kawasaki 0820439 AFM

Model: 2185

Pre-Order

Brand:: AFTERMARKET

Spare part: Head cover Gasket Kawasaki 0820439 AFM Part number: 0820439 Cross-Number: 20/950881 Use ..

47.30 $ excl. VAT 47.30 $

Gaskets: Gaskets

Most Viewed

Hydraulic Pump assembly K5V200DTH10WR-9N2Z-VT Kawasaki K5V200 SKS

Model: 17902

Pre-Order

Brand:: SKS Hydraulic

Spare part: Hydraulic Pump assembly K5V200DTH10WR-9N2Z-VT Kawasaki K5V200 SKS Part number: K5V2..

4,725.00 $ excl. VAT 4,725.00 $

Hydraulic pumps and motors: Hydraulic pumps and motors

Most Viewed

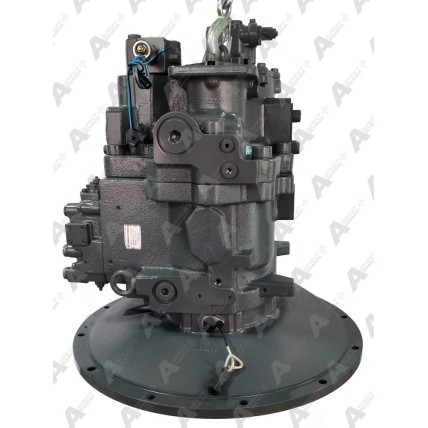

Hydraulic Pump assembly Kawasaki 20/925278 HANDOK

Model: 4230

Pre-Order

Brand:: HANDOK

Spare part: Hydraulic Pump assembly Kawasaki 20/925278 HANDOK Part number: 20/925278 Cross-Number: 2..

9,628.90 $ excl. VAT 9,628.90 $

Main hydraulic units: Main hydraulic units

Most Viewed

Hydraulic Pump assembly Kawasaki 20/925652 HANDOK

Model: 11914

Pre-Order

Brand:: HANDOK

Spare part: Hydraulic Pump assembly Kawasaki 20/925652 HANDOK Part number: 20/925652 Cross-N..

8,575.95 $ excl. VAT 8,575.95 $

Main hydraulic units: Main hydraulic units

Kawasaki K5V200 hydraulic pump specifications

The Kawasaki K5V200 hydraulic pump is a variable displacient axial piston pump with a swash plate designed for open hydraulic systis in heavy mobile equipment, including excavators, cranes, drilling rigs and other equipment requiring high performance and reliability.

Technical specifications of the Kawasaki K5V200 hydraulic pump:

Type: Swash plate axial piston pump
Displacient: 200 cm³/rev
Nominal pressure: 34.3 MPa (343 bar)
Maximum pressure: 39.2 MPa (392 bar)
Maximum rotation speed: 2200 rpm
Weight: approximately 257 kg
Input power: up to 150 kW
Working fluid: Mineral hydraulic oil with anti-wear properties
Viscosity range: 10–1000 cSt
Applications: excavators, loaders, cranes, tractors, combines, injection machines, fans, garbage trucks

Design features of the Kawasaki K5V200 hydraulic pump:

High reliability: durability and wear resistance
Compact: easy to install in limited space
Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
High performance: stable oil supply even under high loads

Hydraulic pump cross number: 20/925278, 20/925278R, 20/925334, 20/925334R, 20/925789, 20/925789R, 20/925652, 20/925652R, 20/951041, 20/951041R, 332/K3167, 332/K5127, 332/K8167, 333/J2146, JSJ0050, JSJ0050R, 31NB-10010, 31NB-10020, 31NB-10022, 31QB-10020, 31QB-10030, 31KB-10010, 31QB-10011 VOE14526609, VOE14569675, VOE14612484, VOE14618624, VOE14595548, 295-9674, 295-9655, 315-4393, 322-8733, 497-8499, 283-6116, 434-8188, 477-8794, 497-8499, 266-7954, 274-2490, 246-9867, 247-8841, 242-6920, 247-8985, 247-8729, 242-6919, 8T-4131, 6V-8200, 7I-8166, 109-1296, 7I-8172, 242-6914, 247-8712, 7I-8152, 109-1294, 7I-8171, 242-6915, 095-0965, 095-0966, 242-6918, 200-3292, 264-8266, 234-4539, 249-1306, 242-6916, 110-5525, 153-4906, 295-9656, 7I-8154, 242-6912, 242-6913, 289-8172, 7I-8084, 311-9548, 247-8725, 095-0882, 247-8786, 206-9290, 242-6917, 095-0944, 249-6657, 289-8174, 289-8175, 6V-5204, 247-8718, 289-8173, 8T-0343, 8T-4241, 247-8787, 247-8719, 259-0835, 295-9658, 259-0832, 247-8715, 295-9659, 295-9657, 249-1307, 247-8713, 8T-9080, 225-4516, 249-6670, 247-8720, 247-8717, 095-0929, 247-8726, 259-0831, 206-9291, 225-4518, 295-9660

Installed in the model:

CAT :330D, 330DL, 330DN, 336D, 336DL, 345C M330D
HYUNDAI : R4500LC-7, R450LC-7, R500LC-7, R4700LC-7, R450LC-9, R480LCH, R480LC-9S, R520LCF
JCB : JS330, JS330, JS330 AUTO, JS330, JS330LCT4, JS330LRT4, JS330LXT4, JS330NLCT4, JS330NXDT4, JS330XD, JS330XD AUTO, JS360, JS360LR, JS360XD, JS360LCT4, JS360LRT4, JS360LXDT4, JS360NLCT4, JS360NXDT4, JS370, JS460, JS500
VOLVO : EC460B, EC460C, EC470CR, EC480, R520LC-9
KCP KML1714

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V200 hydraulic pump.
