Model: 3641
Pre-Order
Spare part: Seal kit pump Kawasaki 20/950881 NOK AFM Part number: 20/950881 Cross-Number: 20/950880,..
78.80 $
excl. VAT 78.80 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 9432
Pre-Order
Spare part: Seal kit pump Kawasaki 20/951847 YBS Part number: 20/951847 Cross-Number: 20/950880, 20/..
145.90 $
excl. VAT 145.90 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 8472
Pre-Order
Spare part: Seal kit pump Kawasaki 20/951965 YBS Part number: 20/951965 Cross-Number: 20/950880, 20/..
98.30 $
excl. VAT 98.30 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 4245
Pre-Order
Spare part: Seal kit pump Kawasaki 20/952118 NOK KOREA Part number: 20/952118 Cross-Number: 20/95088..
105.00 $
excl. VAT 105.00 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 4246
Pre-Order
Spare part: Seal kit pump Kawasaki K3V140, K3V180, K5V160, K5V180 SPINPARTS Part number: Cross-Numbe..
58.80 $
excl. VAT 58.80 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 3040
Pre-Order
Spare part: Seal kit pump Kawasaki VOE14554798 YBS Part number: VOE14554798 Cross-Number: 20/950880,..
98.30 $
excl. VAT 98.30 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 4241
Pre-Order
Spare part: Seal kit pump Kawasaki XJBN-01108 SPINPARTS Part number: XJBN-01108 Cross-Number: VOE145..
84.00 $
excl. VAT 84.00 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 2762
Pre-Order
Spare part: Servo Piston Kawasaki 0820429 HANDOK Part number: 0820429 Cross-Number: XJBN-00703, 20/9..
49.15 $
excl. VAT 49.15 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 3896
Pre-Order
Spare part: Shoe plate Kawasaki XJBN-00023 HANDOK Part number: XJBN-00023 Cross-Number: 0451018, SA7..
31.53 $
excl. VAT 31.53 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 15578
Pre-Order

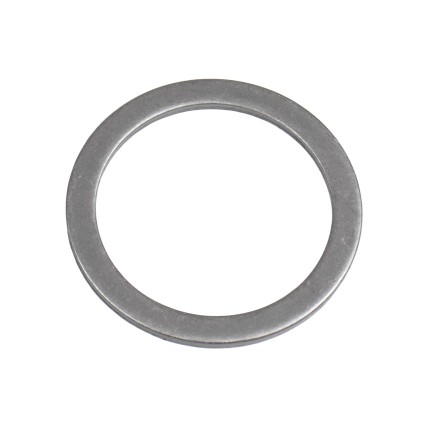

Spare part: Spacer of Bearing Kawasaki XJBN-00569 HANDOK Part number: XJBN-00569 Cross-Number: 7I-81..
9.19 $
excl. VAT 9.19 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 4194
Pre-Order
Spare part: Spring of Ball guide SA7223-00180 Kawasaki K3V180, K3VG180, K5V160, K5V200, K7V100, K7V1..
2.04 $
excl. VAT 2.04 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 11119
Pre-Order
Spare part: Spring of Ball guide XJBN-00541 Kawasaki K3V180, K3VG180, K5V160, K5V200, K7V100, K7V125..
2.70 $
excl. VAT 2.70 $
Hydraulic parts other:
Hydraulic parts other
Most Viewed
Model: 11629
Pre-Order
Spare part: Support Kawasaki K5V200DT SKS Part number: Cross-Number: Use in: Kawasaki K5V200DT Use i..
119.23 $
excl. VAT 119.23 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 1074
Pre-Order

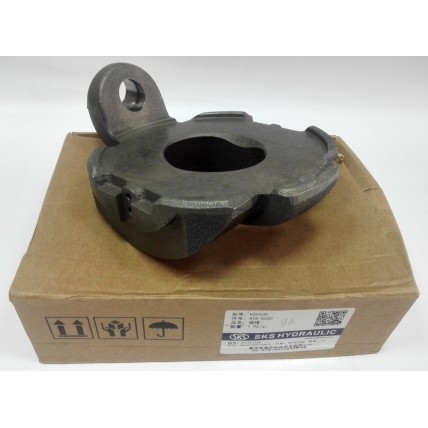

Spare part: Swash plate (Cam rocker) Kawasaki K5V200 SKS Part number: Cross-Number: Use in: Kawasaki..
285.00 $
excl. VAT 285.00 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 1075
Pre-Order

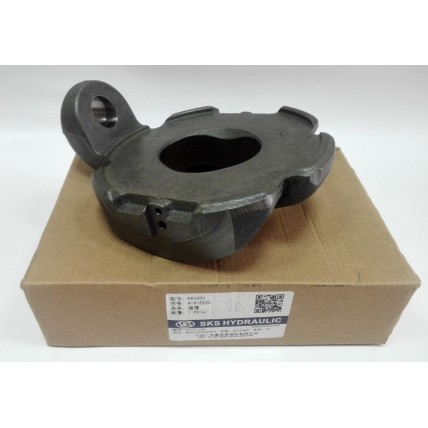

Spare part: Swash plate (Cam rocker) Kawasaki K5V200 SKS Part number: Cross-Number: Use in: Kawasaki..
285.00 $
excl. VAT 285.00 $
Main hydraulic units:
Main hydraulic units
Kawasaki K5V200 hydraulic pump specifications
The Kawasaki K5V200 hydraulic pump is a variable displacient axial piston pump with a swash plate designed for open hydraulic systis in heavy mobile equipment, including excavators, cranes, drilling rigs and other equipment requiring high performance and reliability.
Technical specifications of the Kawasaki K5V200 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 200 cm3/rev
- Nominal pressure: 34.3 MPa (343 bar)
- Maximum pressure: 39.2 MPa (392 bar)
- Maximum rotation speed: 2200 rpm
- Weight: approximately 257 kg
- Input power: up to 150 kW
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 10–1000 cSt
- Applications: excavators, loaders, cranes, tractors, combines, injection machines, fans, garbage trucks
Design features of the Kawasaki K5V200 hydraulic pump:
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump cross number: 20/925278, 20/925278R, 20/925334, 20/925334R, 20/925789, 20/925789R, 20/925652, 20/925652R, 20/951041, 20/951041R, 332/K3167, 332/K5127, 332/K8167, 333/J2146, JSJ0050, JSJ0050R, 31NB-10010, 31NB-10020, 31NB-10022, 31QB-10020, 31QB-10030, 31KB-10010, 31QB-10011 VOE14526609, VOE14569675, VOE14612484, VOE14618624, VOE14595548, 295-9674, 295-9655, 315-4393, 322-8733, 497-8499, 283-6116, 434-8188, 477-8794, 497-8499, 266-7954, 274-2490, 246-9867, 247-8841, 242-6920, 247-8985, 247-8729, 242-6919, 8T-4131, 6V-8200, 7I-8166, 109-1296, 7I-8172, 242-6914, 247-8712, 7I-8152, 109-1294, 7I-8171, 242-6915, 095-0965, 095-0966, 242-6918, 200-3292, 264-8266, 234-4539, 249-1306, 242-6916, 110-5525, 153-4906, 295-9656, 7I-8154, 242-6912, 242-6913, 289-8172, 7I-8084, 311-9548, 247-8725, 095-0882, 247-8786, 206-9290, 242-6917, 095-0944, 249-6657, 289-8174, 289-8175, 6V-5204, 247-8718, 289-8173, 8T-0343, 8T-4241, 247-8787, 247-8719, 259-0835, 295-9658, 259-0832, 247-8715, 295-9659, 295-9657, 249-1307, 247-8713, 8T-9080, 225-4516, 249-6670, 247-8720, 247-8717, 095-0929, 247-8726, 259-0831, 206-9291, 225-4518, 295-9660
Installed in the model:
- CAT :330D, 330DL, 330DN, 336D, 336DL, 345C M330D
- HYUNDAI : R4500LC-7, R450LC-7, R500LC-7, R4700LC-7, R450LC-9, R480LCH, R480LC-9S, R520LCF
- JCB : JS330, JS330, JS330 AUTO, JS330, JS330LCT4, JS330LRT4, JS330LXT4, JS330NLCT4, JS330NXDT4, JS330XD, JS330XD AUTO, JS360, JS360LR, JS360XD, JS360LCT4, JS360LRT4, JS360LXDT4, JS360NLCT4, JS360NXDT4, JS370, JS460, JS500
- VOLVO : EC460B, EC460C, EC470CR, EC480, R520LC-9
- KCP KML1714
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V200 hydraulic pump.
